Product Name/Title: 10 Hole Active Link
Brand: Connected Switchgear
SKU: LA10
Alternatively Known As: Active Link, 10 Hole Link, Electrical Link, Brass Active Link
Technical Specifications
- Product Code: LA10
- Voltage: 500V
- Current Rating: 110A
- Terminal Configuration: 10 holes (6 x 5mmØ, 4 x 7mmØ)
- Cable Size Acceptance: Up to 35mm²
- Compliance: AS/NZS 60947.7.3:2015
- Dimensions (H x L x W): 50mm x 200mm x 100mm
- Weight: 1.0 kg
Key Features
- Manufactured from high percentage brass material.
- Rated at 500V in both 110A and 350A configurations.
- Accepts cable size up to 35mm² with 10 terminal holes.

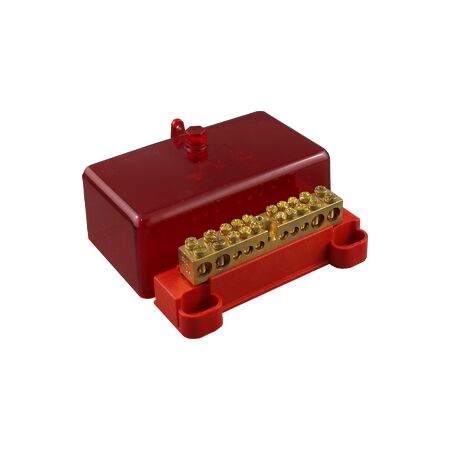

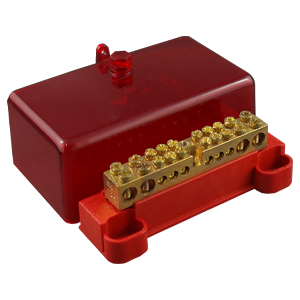

- Comes with red transparent screw-on cover to indicate amperage and cable size.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring high current links
- General: Any application needing reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 60947.7.3:2015 for electrical equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
5 years warranty against manufacturing defects, covering replacement and installation by an authorized electrician.
Available Now
The 10 Hole Active Link is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
