HV9762-IP20-320-4K

10w IP20 24v DC 4000K CSP Dotless LED Strip


$30.80 List price: $40.10
+

Weight: 0.200 kg

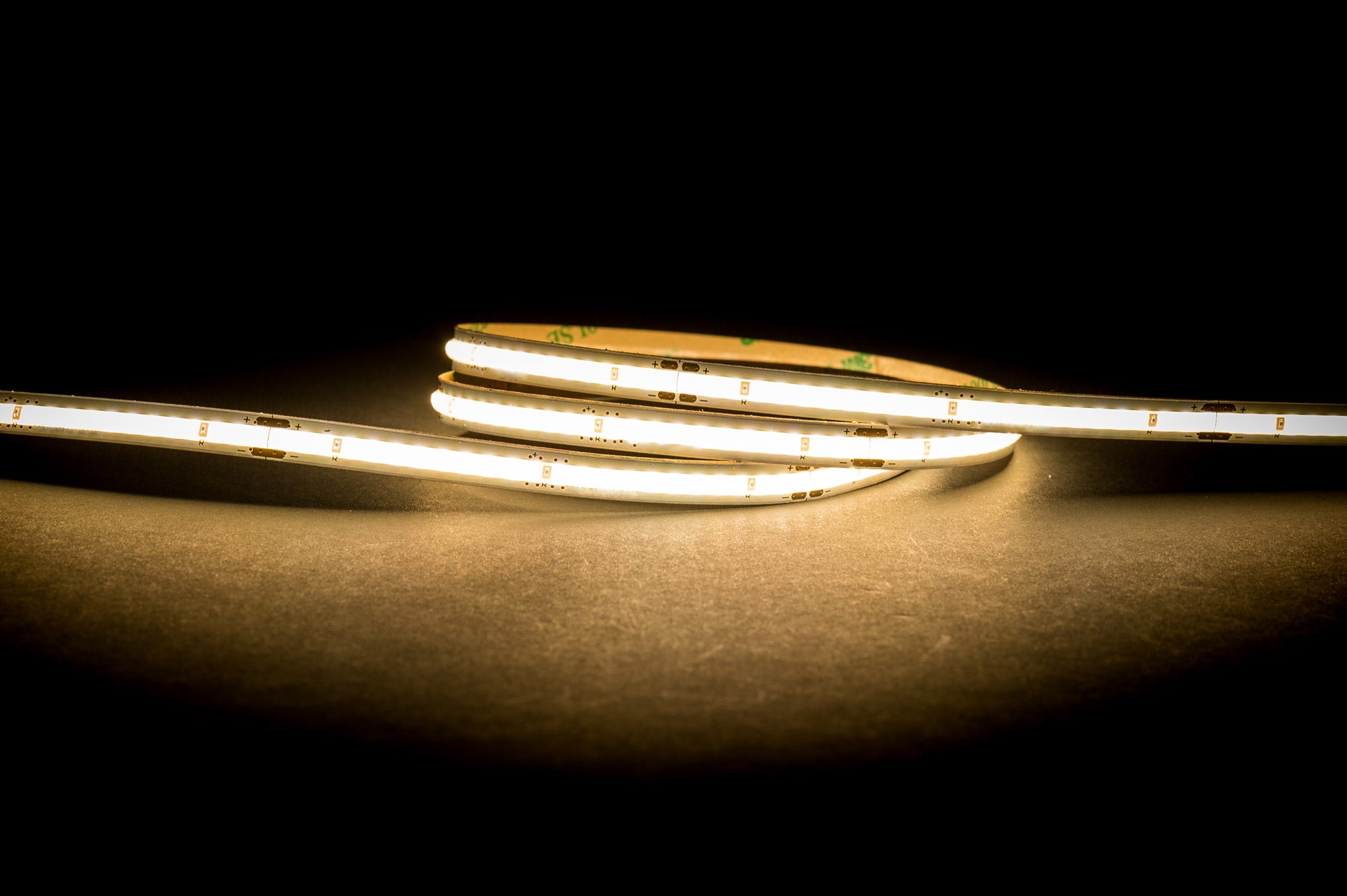

Product Name/Title: 10w IP20 24v DC 4000K CSP Dotless LED Strip

Brand: Havit

SKU: HV9762-IP20-320-4K

Alternatively Known As: CSP LED Strip, Dotless LED Strip, 24V LED Strip

Technical Specifications
  • Input Voltage: 24V DC
  • Power: 10W per metre
  • Lumens Output: 1035lm per metre
  • IP Rating: IP20
  • Cutting Increments: 50mm
  • Maximum Length: 5 metres

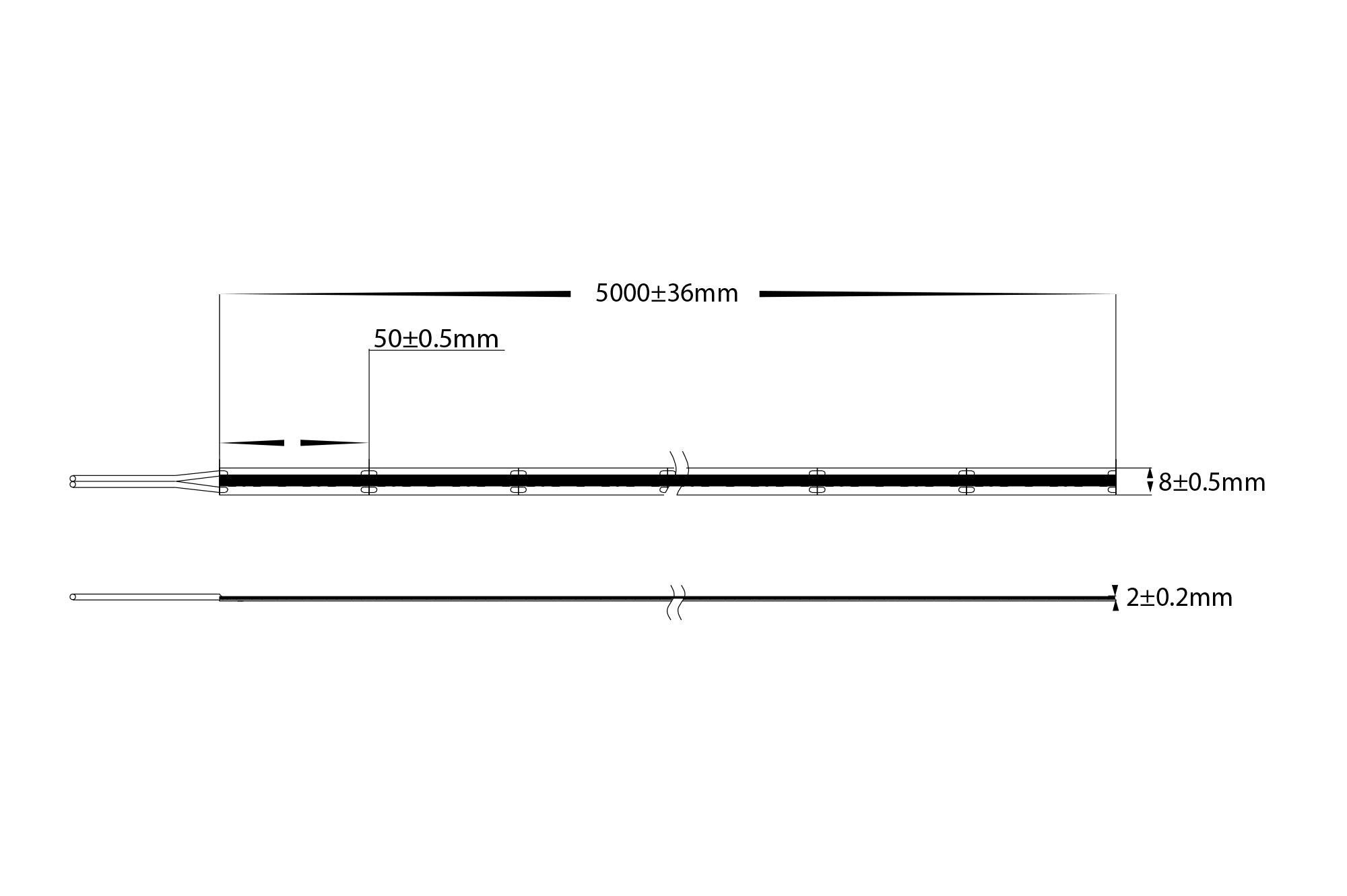

  • Dimensions (H x L x W): 2mm x 5000mm x 8mm
  • Weight: 0.2 kg
Key Features
  • 4000K color temperature for neutral white light.
  • 10W per metre with 320 LED chips for high brightness.
  • Beam angle of 120 degrees for wide light distribution.
  • Available in custom cut lengths or 30m roll.
Professional Installation Requirements
  • Must be installed on aluminium heat dissipating surface for warranty purposes.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Indoor lighting solutions for various applications
Environmental Benefits
  • Energy-efficient design reduces power consumption.
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Havit 10W IP20 24V DC 4000K CSP Dotless LED Strip is available now for immediate purchase. Ideal for residential and commercial spaces, providing versatile and efficient lighting solutions.

Data Sheet (HV9762-IP20-320-XK_Spec_Sheet_JUN23.pdf, 772 Kb) [Download]

Installation Instructions (HL_LED_Strip_Installation_Instructions_AUG23.pdf, 214 Kb) [Download]
