DESCRIPTION

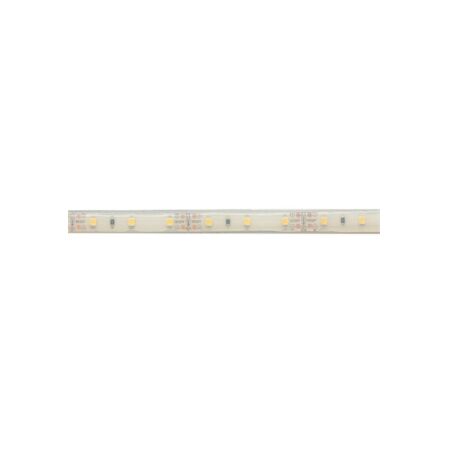

12V LOW VOLTAGE LED STRIP IP67
INCLUDES
• FL1209/SR 12V low voltage LED strip
OPTIONS
DIMMING OPTION
• TYPE A - Trailing edge dimmer with DIM40W/12V
• TYPE B
LT8903DIM
LT8905DIM
LT8904DIM/RP
SUITABLE LED DRIVER
• PLUTO EGL 12V/15W
• PLUTO 30W/12V
• PLUTO 50W/12V
• PLUTO 100W/12V
• PLUTO 200W/12V
• DIM40W/12V
LED CHANNEL - SUFFICIENT HEATSINK REQUIRED
FEATURES
• High efficiency SMD LED chips
• Silicon coated
• Max. roll length 5 m, cuttable every 25 mm at scissors symbol
• Connection length can be extended by certain LED drivers, controllers and repeaters
• Dimmable with compatible controller or dimming LED driver
• Heat sink and 12V LED driver required
TECHNICAL SPECIFICATION
MODEL NO | COLOUR TEMPERATURE | LENGTH/CUTTABLE UNIT | LED/UNIT | INPUT VOLTAGE | POWER | LUMINOUS FLUX | BEAM ANGLE | CRI(RA) | DIMENSIONS L X W |
---|---|---|---|---|---|---|---|---|---|
FL1209WW/SR | 3000K | 25 mm | 120ea/m | 12V DC | 9W/m | 400lm/m | 115º | >80 | 10 x 4.5 mm |
FL1209CW/SR | 4000K | 25 mm | 120ea/m | 12V DC | 9W/m | 400lm/m | 115º | >80 | 10 x 4.5 mm |
FL1209DL/SR | 6000K | 25 mm | 120ea/m | 12V DC | 9W/m | 400lm/m | 115º | >80 | 10 x 4.5 mm |
