Trade Discount 23%
AL5008-WHTC12S02-TS

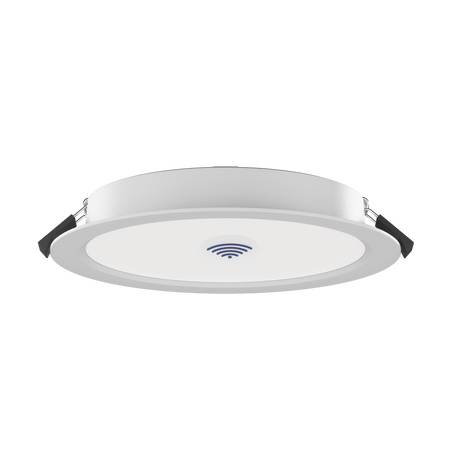

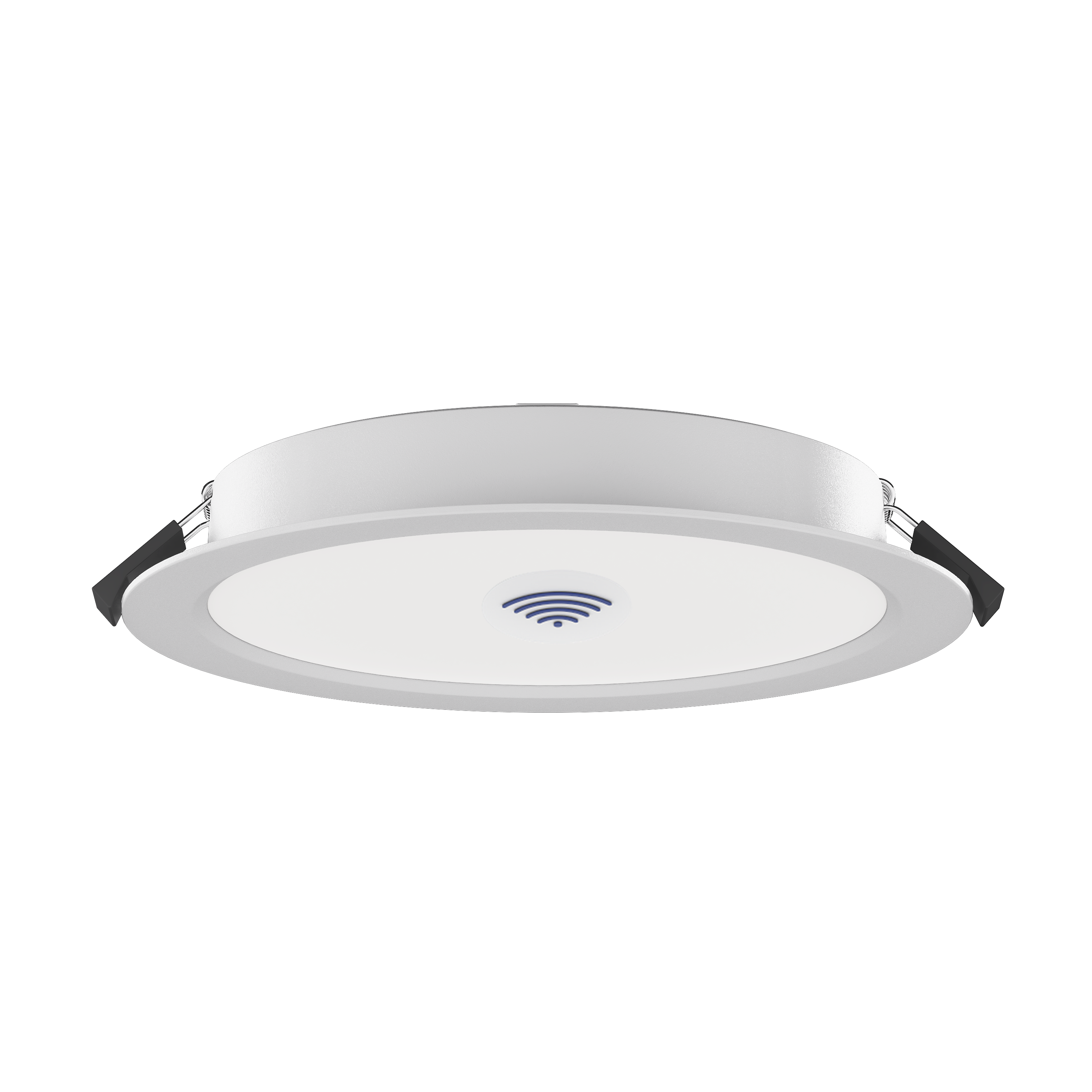

12w PIR Sensor Downlight Non Dimmable


$60.60 List price: $79.00
+

Weight: 0.500 kg

Product Name/Title: 12w PIR Sensor Downlight Non Dimmable

Brand: 3A Lighting

SKU: AL5008-WHTC12S02-TS

Alternatively Known As: PIR Sensor Downlight, Non Dimmable LED Downlight, Motion Sensor Ceiling Light

Technical Specifications
  • Power: 12W
  • LED Chip: Epistar SMD
  • CRI: 80
  • Input Voltage: AC220-240V, 50/60Hz
  • Beam Angle: 100°
  • Surface IP54
  • Lumens Output: 110LM

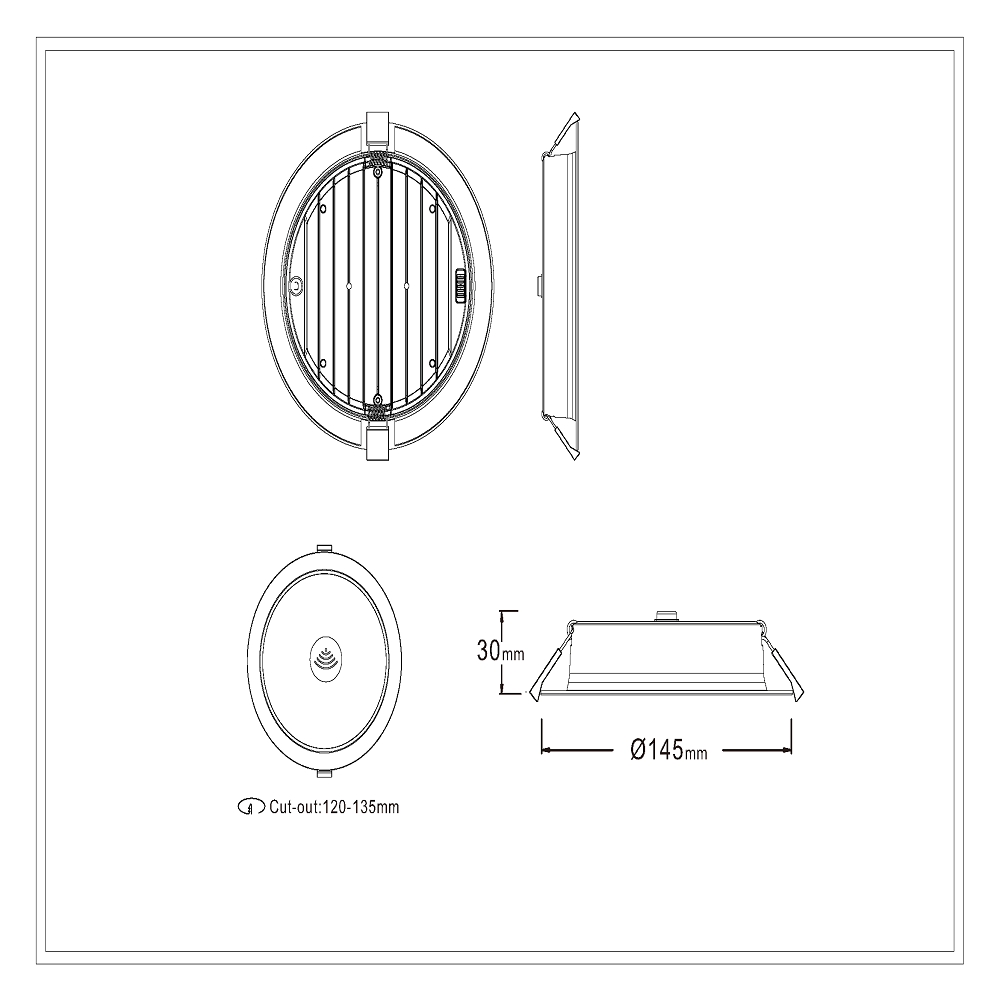

  • Dimensions (H x L x W): 30mm x 145mm x 145mm
  • Weight: 0.5 kg
Key Features
  • 12W power consumption
  • Epistar SMD LED chip
  • CRI: 80
  • Input voltage: AC220-240V, 50/60Hz
  • Beam angle: 100°
  • Surface IP54 rated
  • 3 years warranty
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring lighting with motion detection
Standards & Compliance
  • Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
  • Energy-efficient design reduces power consumption and long-term waste.
Warranty Information

3 years warranty against manufacturing defects.

Available Now

The 12W PIR Sensor Downlight Non Dimmable is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Datasheet (0c4b3e_f531767deb494c7ab1039fe8adba9418.pdf, 780 Kb) [Download]


Lighting Requirement Calculator







This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
