HV9762-IP54-480-5K

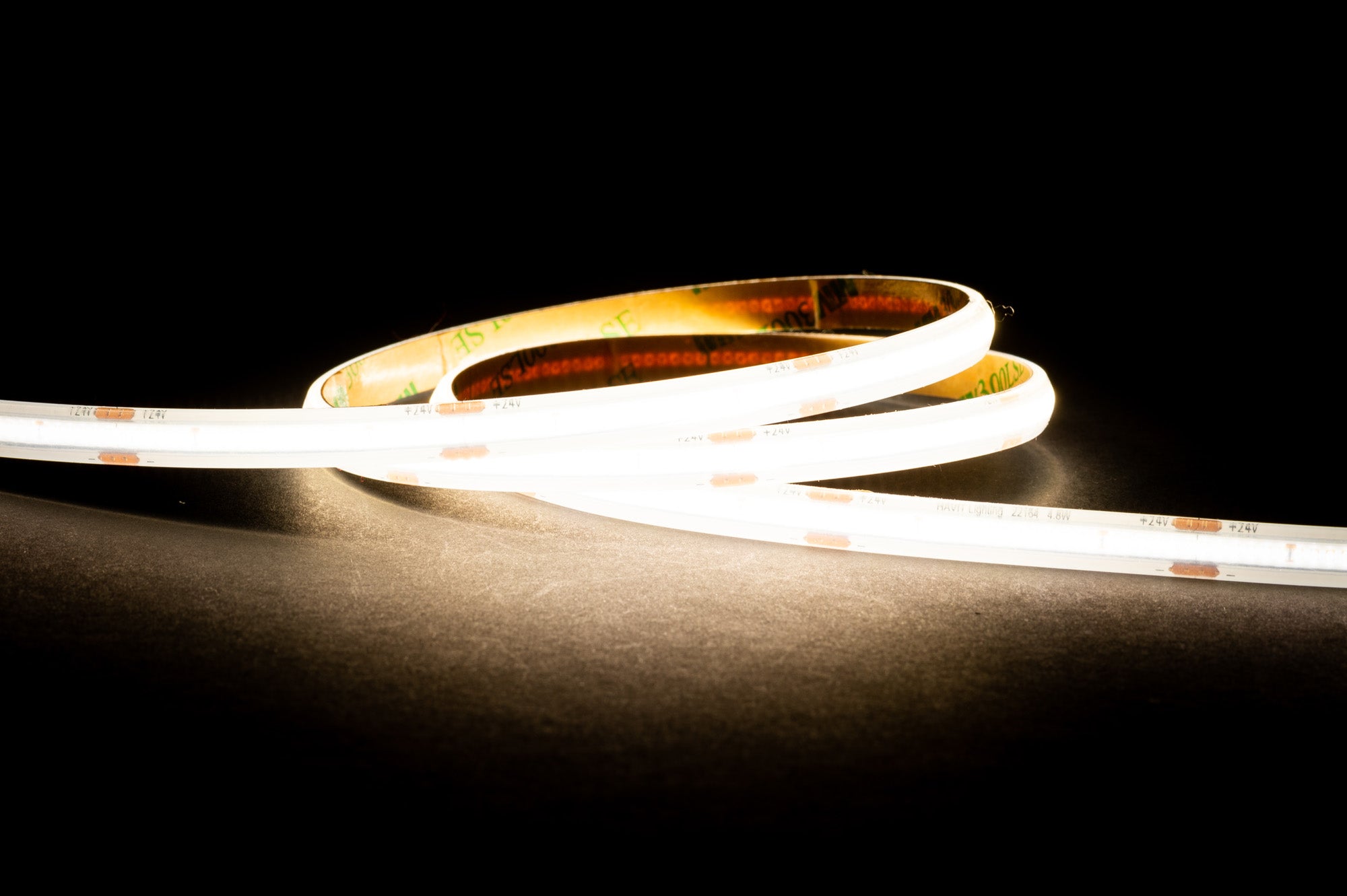

14.4w IP54 24v DC 5500K CSP Dotless LED Strip


$44.70 List price: $58.10
+

Weight: 0.500 kg

Product Name/Title: 14.4w IP54 24v DC 5500K CSP Dotless LED Strip

Brand: Havit

SKU: HV9762-IP54-480-5K

Alternatively Known As: CSP Dotless LED Strip, 5500K LED Strip, IP54 LED Strip

Technical Specifications
  • Power Wattage: 14.4W per metre
  • Input Voltage: 24V DC
  • Lumens Output: 1340lm per metre
  • Beam Angle: 120 degrees
  • Cutting increments: 50mm
  • Maximum length: 5 metres
  • Supplied in Custom Cut Length or 10m Roll

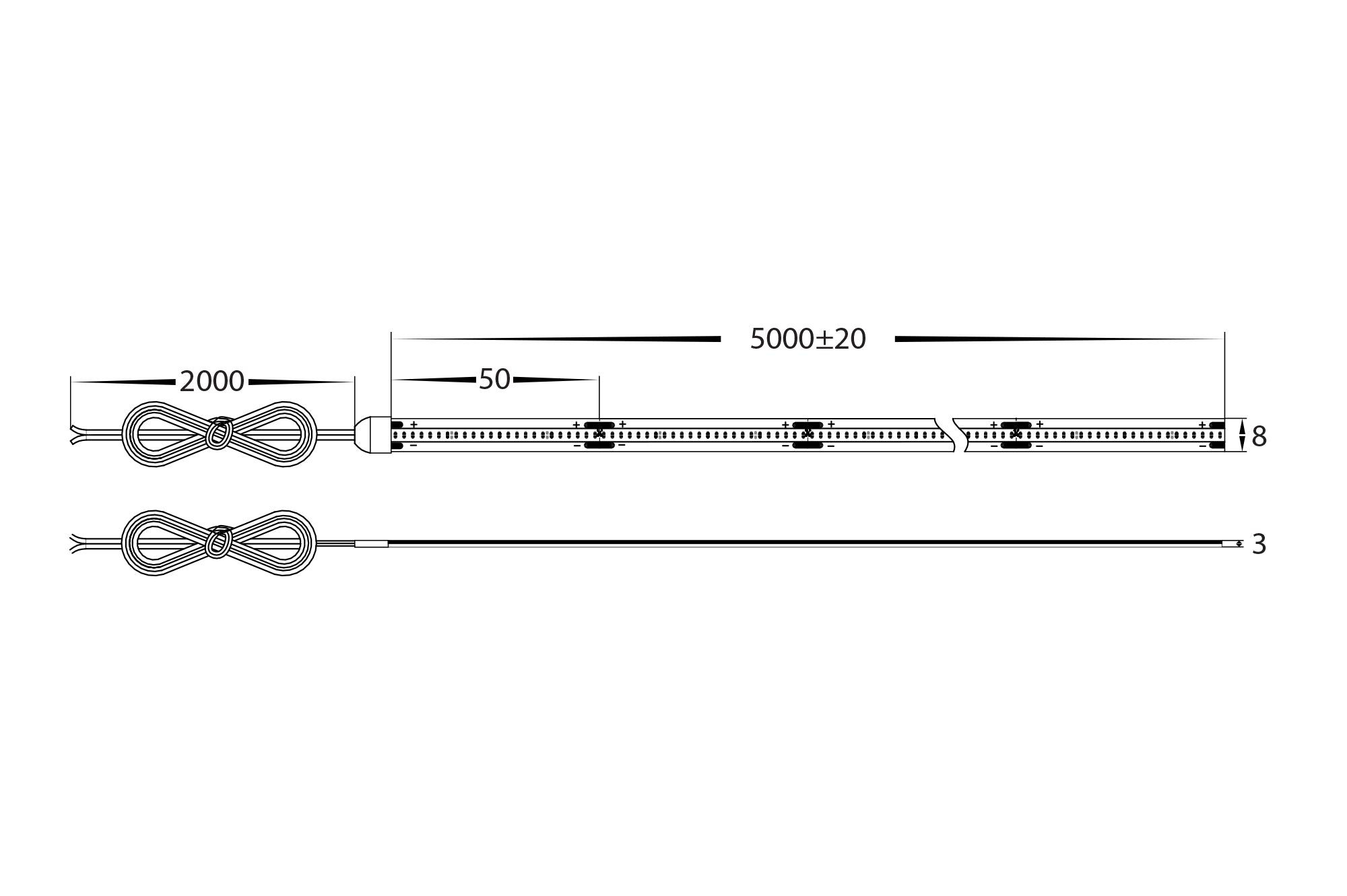

  • Dimensions (H x L x W): 3mm x 10000mm x 8mm
  • Weight: 0.5 kg
Key Features
  • 5500K CSP LED strip with 480 LED chips per metre.
  • High brightness output of 1340lm per metre.
  • IP54 rated for protection against dust and water.
Professional Installation Requirements
  • Must be installed on aluminium heat dissipating surface for warranty purposes.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring flexible lighting solutions
Environmental Benefits
  • Energy-efficient design reduces power consumption and long-term waste.
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Havit 14.4w IP54 24v DC 5500K CSP Dotless LED Strip is available now for immediate purchase. Ideal for residential and commercial spaces, providing flexible and high-quality lighting solutions.

Data Sheet (HV9762-IP54-480-XK_Spec_Sheet_AUG23.pdf, 946 Kb) [Download]

Installation Instructions (HL_LED_Strip_Installation_Instructions_AUG23.pdf, 214 Kb) [Download]


Lighting Calculator
