Inline Fan 150mm
Features
The Minitube Plastic Series of duct mounted axial fans is suitable for applications ranging from domestic to commercial ventilation.
Motors
Type - external rotor, squirrel cage induction motor.
Electricity supply - 220-240V, single-phase, 50/60Hz.
Bearings sealed-for-life, ball.
Speed-controllable.
Motor protection IP44.
If flameproof motors for hazardous locations are required, refer to Compact Miniduct Series.
Internal Thermal Protection
Manual reset type fitted as standard on models 202 and above.
Model 132 is protected by an internal fuse.
Testing

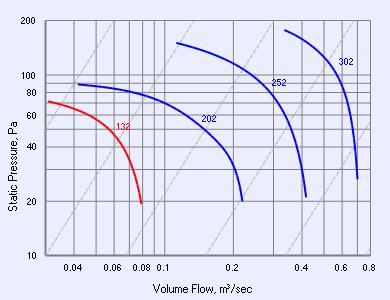

Air flow tests to ISO5801:2004
Noise tests to BS848:Part 2, 1985
Special Features
Can be mounted at any angle.
Tapered ends on 'MTP' range allows standard sized duct to slide on easily
