AL5010-WHTC18S02-TS

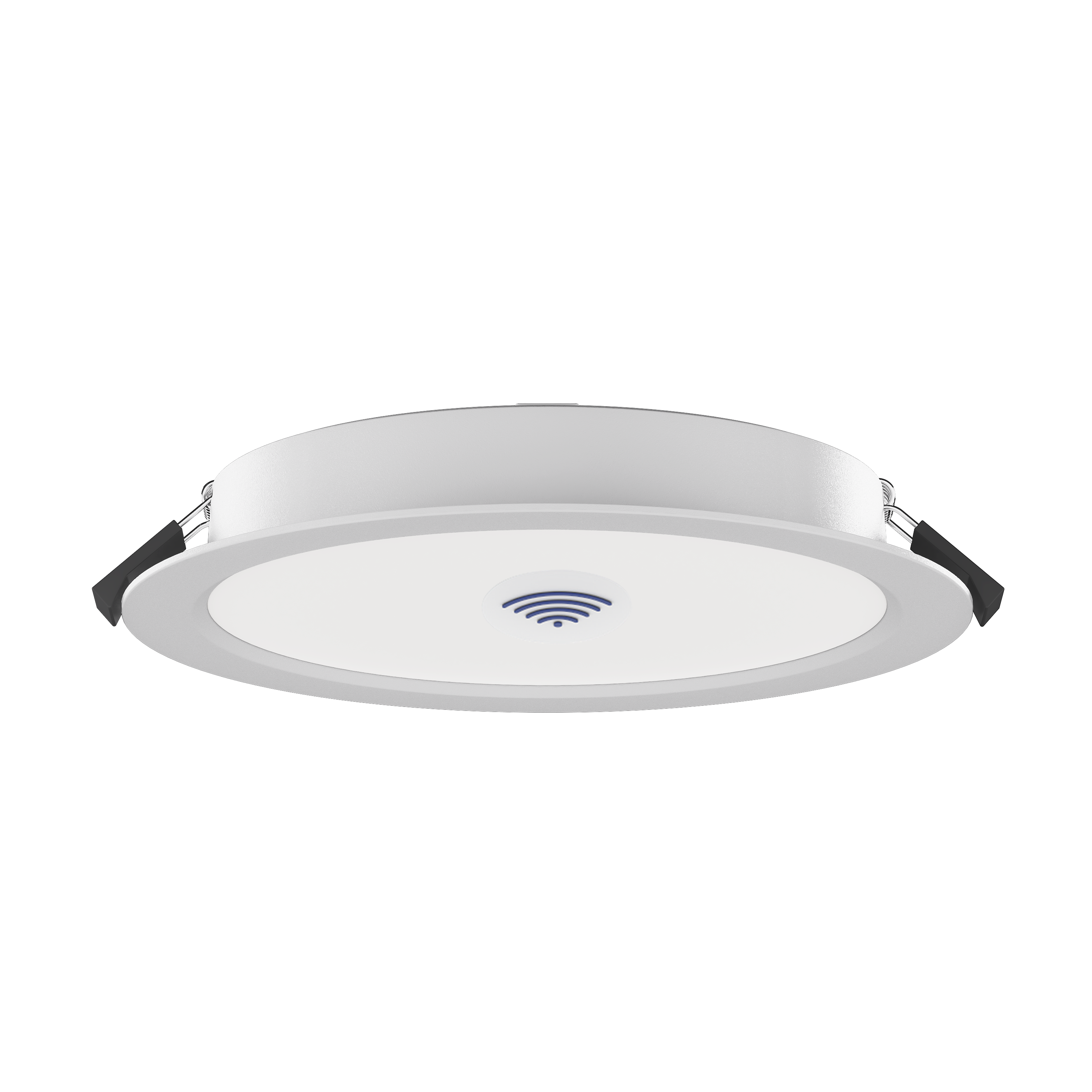

18w PIR Sensor Downlight Non Dimmable


$76.60 List price: $99.80
+

Weight: 0.500 kg

Product Name/Title: 18w PIR Sensor Downlight Non Dimmable

Brand: 3A Lighting

SKU: AL5010-WHTC18S02-TS

Alternatively Known As: PIR Sensor Downlight, Non Dimmable LED Downlight, 18W LED Downlight

Technical Specifications
  • Power: 18W
  • Input Voltage: AC220-240V 50/60Hz
  • CRI: 80

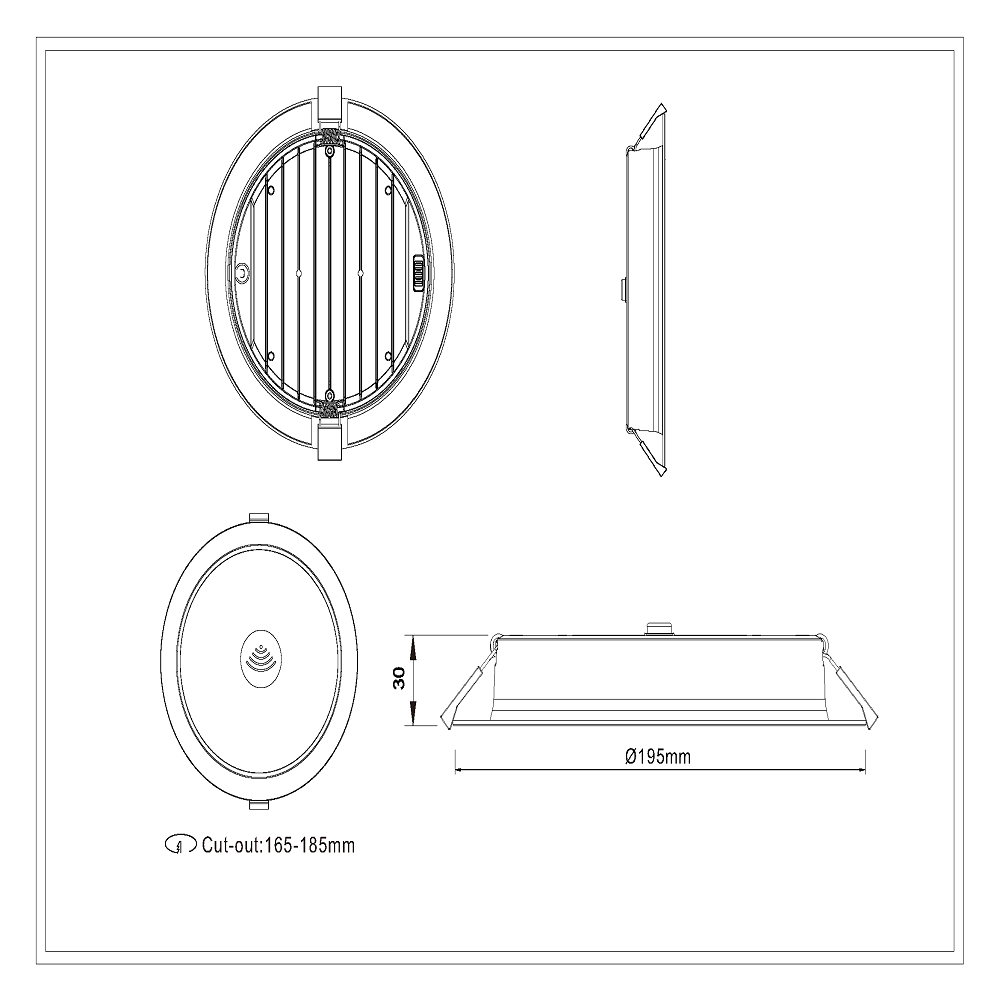

  • Size: Ø195mm x 30mm
  • Cut out size: Ø165-185mm
  • Beam Angle: 100°
  • Lumens Output: 110lm
  • CCT: 3CCT
  • Surface IP54
  • Dimensions (H x L x W): 30mm x 195mm x 195mm
  • Weight: 0.5 kg
Key Features
  • 18W power with Epistar SMD LED chip.
  • Beam angle of 100° for wide illumination.
  • Surface IP54 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring efficient lighting
Standards & Compliance
  • Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
  • Energy-efficient design reduces power consumption.
Warranty Information

3 years warranty against manufacturing defects.

Available Now

The 18W PIR Sensor Downlight Non Dimmable is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Datasheet (0c4b3e_b0360eb4c7ed45f99d1b318aa4389cc5.pdf, 840 Kb) [Download]


Lighting Requirement Calculator







This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
