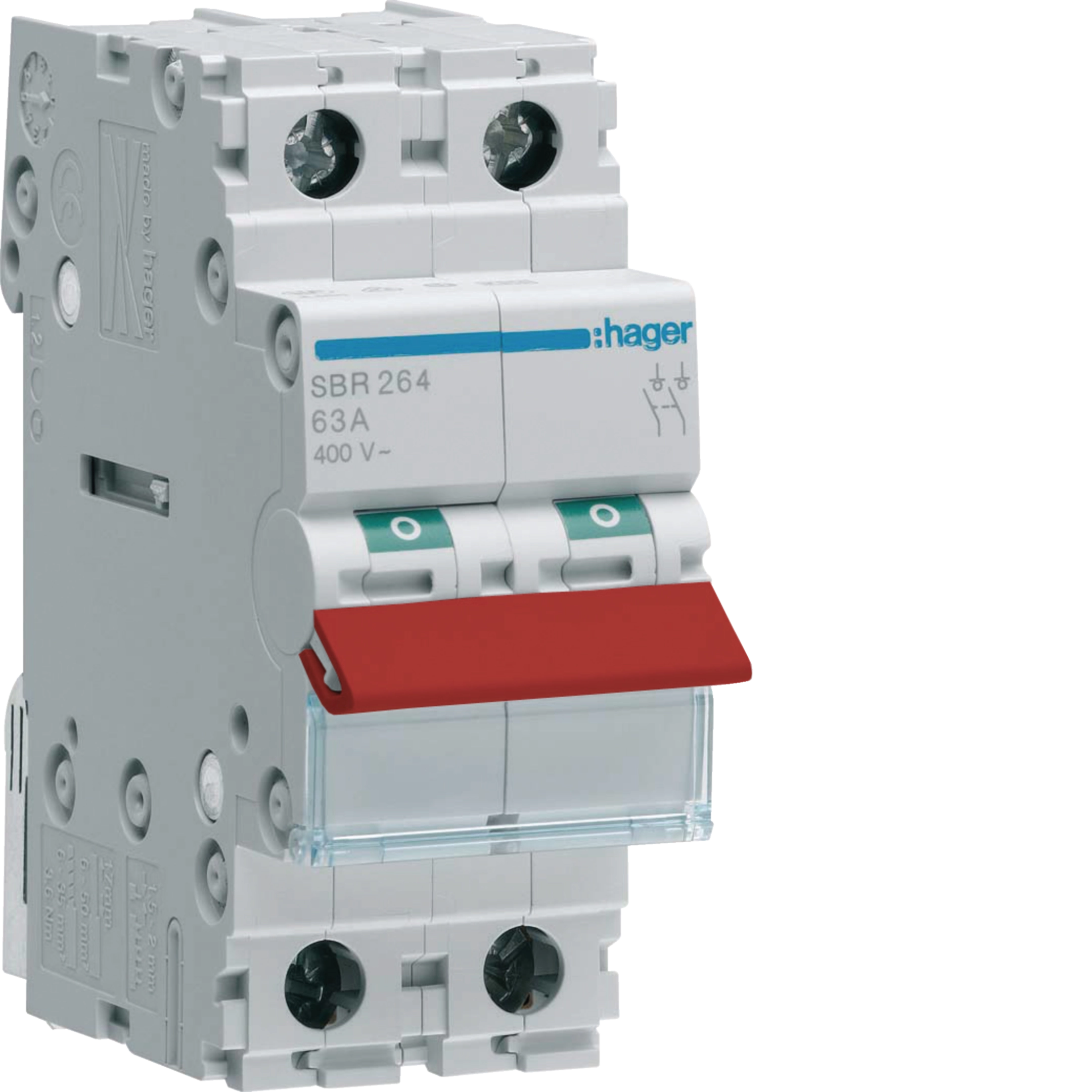

Product Name/Title: 2-pole, 63A Modular Switch 50mm² with Red Toggle
Brand: Hager
SKU: SBR264
Alternatively Known As: Hager SBR264 Modular Switch
Technical Specifications
- Number of poles: 2
- Rated current: 63 A
- Breaking capacity 400 V AC23A: 1332 A
- Rated conditional short-circuit current Icc with gl-gG fuses: 0.94 kA
- Rated operational voltage Ue: 400 V AC
- Rated insulation voltage Ui: 440 V
- Frequency: 50 - 60 Hz
- Type of bottom connection: Screw terminal
- Cross-section flexible conductor: 6 - 35 mm²
- Cross-section rigid conductor: 6 - 50 mm²
- Number of mechanical operations: 40000
- Electrical durability at nominal load in AC21: 2500 cycles
- Ingress Protection (IP) class: IP20
- Rated impulse withstand voltage Uimp: 6000 V
- Dimensions (H x L x W): 83mm x 68mm x 35mm
- Weight: 0.4 kg
Key Features
- Compact 2-module design for efficient use of panel space.
- Red toggle for easy visual identification and operation.
- High endurance with 40,000 mechanical operations.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Used in industrial settings for controlling heavy machinery.
- Applicable in commercial buildings for main switchboard installations.
- Ideal for use where a robust and reliable switch is required.
Standards & Compliance
- Complies with IEC 60947-3 for switch performance.
Environmental Benefits
- Durable design reduces need for frequent replacements.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The 2-pole, 63A Modular Switch with Red Toggle is available now for immediate purchase. Ideal for electrical control panels in industrial and commercial settings.
