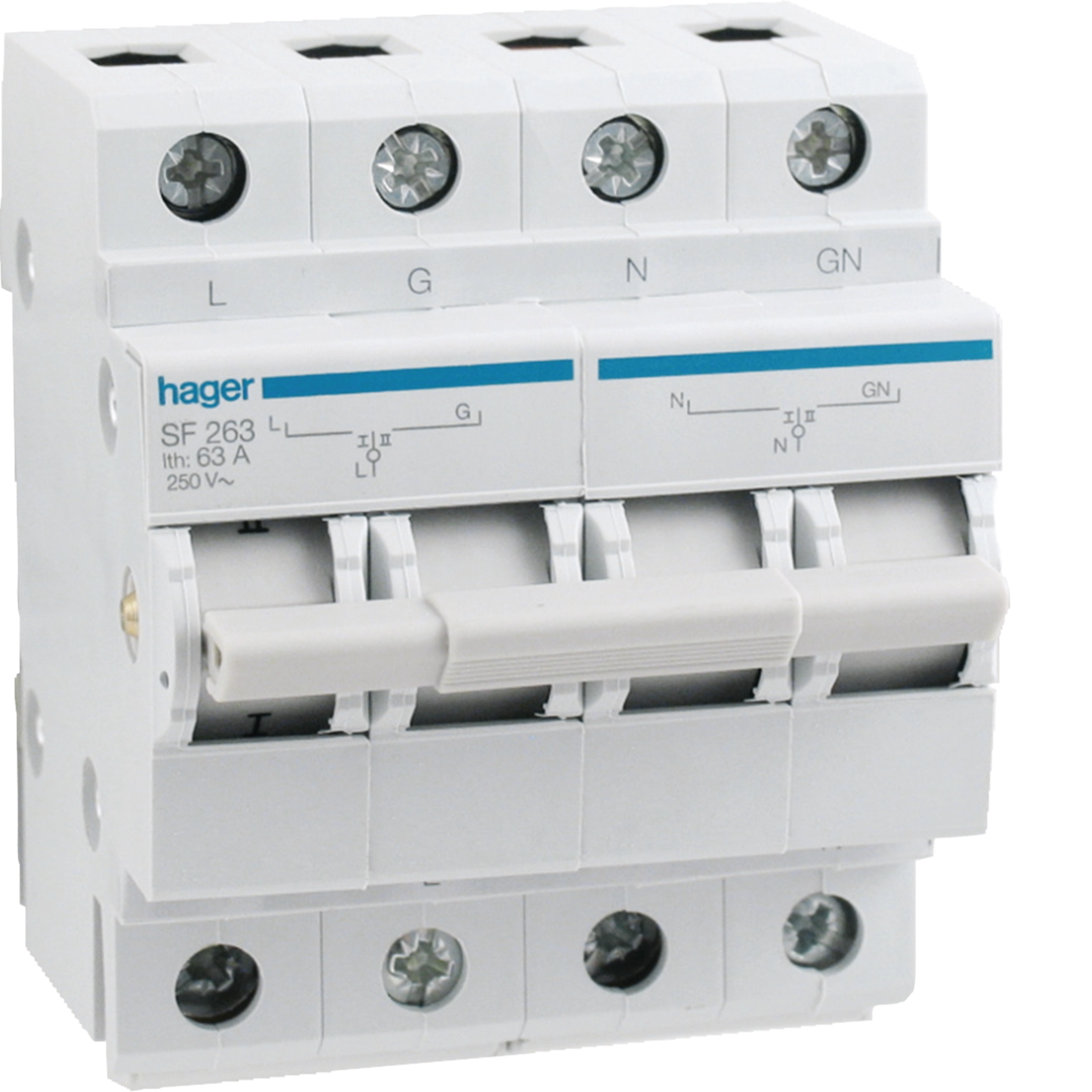

Product Name/Title: 2 pole Changeoverswitch 63A I-0-II
Brand: Hager
SKU: SF263
Alternatively Known As: 63A I-0-II Changeover Switch
Technical Specifications
- Number of poles: 2
- Type of pole: 2P
- Rated current: 63 A
- Rated conditional short-circuit current Icc with gl-gG fuses: 6 kA
- Nominal tightening torque: 2,90 Nm
- Rated operational voltage Ue: 230 V
- Type voltage supply: AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4000 V
- Number of modules: 4
- Ingress Protection (IP) class: IP20
- Frequency: 50 - 60 Hz
- Height: 90 mm
- Width: 71,50 mm
- Depth: 72 mm
- Number of NO contacts: 0
- Number of NC contacts: 0
- Operating temperature: -25 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Cross-section flexible conductor: 16 mm²
- Cross-section rigid conductor: 25 mm²
- Number of mechanical operations: 100000
- Electrical durability at nominal load in AC21 in operating cycles: 5000
- Total power loss under IN: 3,60 W
- Dimensions (H x L x W): 90mm x 72mm x 71.5mm
- Weight: 0.2 kg
Key Features
- Reliable 2 pole changeover switch for versatile applications.
- Handles a rated current of 63 A with precision.
- Features an IP20 ingress protection rating.
Professional Installation Requirements
- It is recommended to have this switch installed by a licensed electrician to ensure safety and compliance.
Applications
- Suitable for use in residential and commercial electrical systems.
Standards & Compliance
- Complies with relevant Australian safety and performance standards.
Environmental Benefits
- Designed with efficiency in mind to reduce energy loss.
Warranty Information
2 years warranty for manufacturing defects.
Available Now
The Hager SF263 2 Pole Changeover Switch is available for immediate purchase and is ideal for various residential and commercial circuit applications.
