56MM-SP02

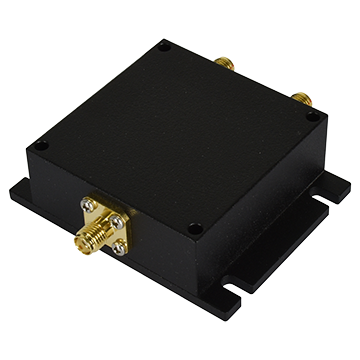

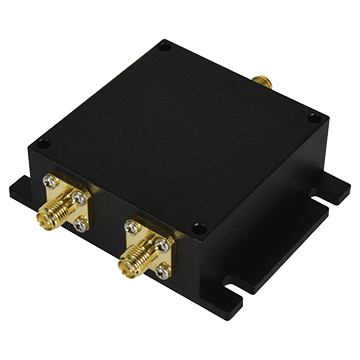

2 Way Splitter SMA Type 698-3800 MHz - 50 Ohm


$118.00 List price: $153.90
+

Weight: 0.300 kg

Product Name/Title: 2 Way Splitter SMA Type 698-3800 MHz - 50 Ohm

Brand: Matchmaster

SKU: 56MM-SP02

Alternatively Known As: SMA Splitter, RF Splitter, 2 Way RF Splitter, SMA 50 Ohm Splitter

Technical Specifications
  • Frequency Range: 698-3800 MHz
  • Impedance: 50 Ohm
  • Isolation: Greater than 20 dB
  • Insertion Loss: Less than 3 dB
  • Connector Type: SMA Female
  • Dimensions (H x L x W): 30mm x 70mm x 50mm
  • Weight: 0.3 kg
Key Features
  • High-frequency range from 698 to 3800 MHz.
  • 50 Ohm impedance for optimal signal transmission.
  • Compact design for easy integration into existing systems.
Professional Installation Requirements
  • Installation by a qualified technician is recommended for optimal performance.
Applications
  • Telecommunications: Signal distribution for antennas
  • Broadcasting: Enhanced signal routing for TV and radio
  • General: Any application requiring RF signal splitting.
Standards & Compliance
  • Complies with relevant Australian communication standards.
Environmental Benefits
  • Designed to reduce signal loss and improve energy efficiency in telecommunications.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The 2 Way Splitter SMA Type 698-3800 MHz - 50 Ohm is available now for immediate purchase. Ideal for telecommunications and broadcasting applications.
