S9754/312TC

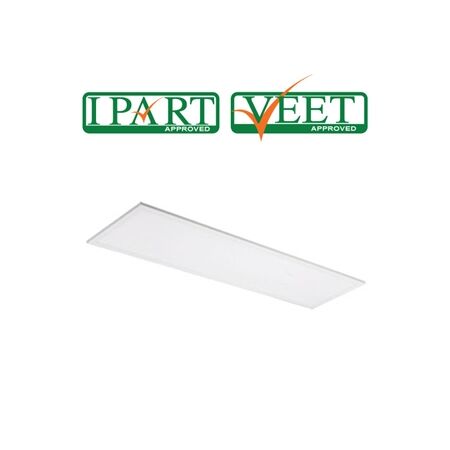

30W LED T-Bar Fittings 3000K/4000K/6000K


$84.20 List price: $111.90
+

DESCRIPTION

LED T-BAR FITTINGS

INCLUDES

• S9754/312TC LED panel

• LED PANEL installations

• Constant current LED driver

• 1.2 m flex & plug

OPTIONS

DIMMING OPTIONS

• Analogue dimming (Trailing edge, 1-10V dimming)

• Digital dimming (DSI, DALI)

FEATURES

• Extruded aluminium frame

• Powder coated finish

• High transparency opal polystyrene baked diffuser

• Built-in high efficiency SMD LED chips

• IP20 suitable for indoor use only

INSTALLATION TYPE

• Standard metric T-bar ceiling recessed installation

• Plaster ceiling recessed installation (S9704 Plaster ceiling frame required)

• Surface mounted installation (S312FM, S606FM or S612FM Surface mounted frame is required)

• Suspended installation (SSI1512 or SSY1512 Suspension unit required)

TECHNICAL SPECIFICATION

MODEL
NO
COLOUR
TEMPERATURE
INPUT
VOLTAGE
POWERLUMINOUS
FLUX
BEAM
ANGLE
CRI(RA)DIMMABLEFITTING
COLOUR
DIMENSIONS
L X W X H
EMERGENCY
CLASSIFICATION
S9754/312 WW3000K240V~50Hz30W3100lm100º>80NoWhite1195 x 295 x 12 mmD32
S9754/312 CW4000K240V~50Hz30W3200lm100º>80NoWhite1195 x 295 x 12 mmD32
S9754/312 DL6000K240V~50Hz30W3300lm100º>80NoWhite1195 x 295 x 12 mmD32
