These systems use the latest technology in IP and network video recording offering full HD 1080P all the way to 4K high resolution
These systems come in wired and wireless configurations with high grade video processing and recording capacity up to 24TB (6TB x 4HDD)View More Security

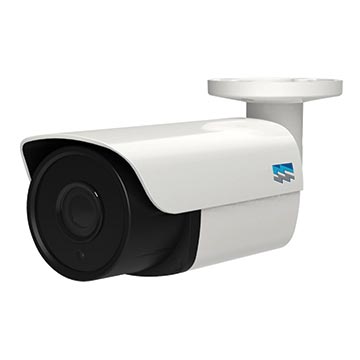

ONVF industry standard support mobile viewing4 mega pixel HD resolution 2592x1520 25/30 FPS 15FPS @ 5MPPOE LAN connectionIngress protection rating IP66IR distance 15-20m3
6mm lens
Camera
Image Sensor
1/3” OV4689 CMOS
Effective Pixels
2688 (H) x 1520 (V)
Electronic Shutter
AUTO, 1/25s ~ 1/100000s
Min. Illumination
0.1Lux@F1.2(AGC ON), 0Lux IR on
Day/Night
Auto/Color/(B/W)/Timing
WDR
Digital WDR
White Balance
Auto
AGC/BLC
Support
DNR
2D/3D DNR
Other
Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate
Encode
Embedded Solution
Hi3516D
Video Standard
H.265/H.264
Video Resolution
Main Stream: 15fps@5MP (2592x1944), 25fps@4MP (2592x1520), 30fps@3MP/1080P/720PSub Stream: VGA(640x480)/360P/QVGA@25fps, etc.
Video Bitrates
32Kbps - 8Mbps, VBR/CBR
OSD Overlay
Title and Time overlay
IR Led
IR Led
8 pcs small array IR Leds
IR Distance
15-20 M
Lens
Focal length
HD 3.6mm fixed lens
Network Services
Protocol
HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P
Yes
Web
IE , Firefox, etc.
Media
CMS, Android, iOS
ONVIF
2.4 compatible
General
Network Port
1-RJ45, 100Mbps, POE optional
Power Supply
12 VDC ± 10%
Power Consumption
< 8 W
Operating Temp
-30°C-(+60)°C, 10%-90%RH
'
