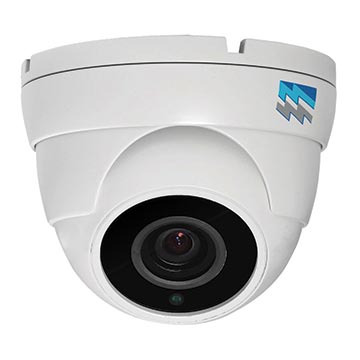

4/5MP HD Dome IP Camera LAN POE IP66 3.6mm Lens 2592x1944 Res

Matchmaster security systems are suitable for home, offices including small business applications
These systems use the latest technology in IP and network video recording offering full HD 1080P all the way to 4K high resolution
These systems come in wired and wireless configurations with high grade video processing and recording capacity up to 24TB (6TB x 4HDD)View More Security
ONVF industry standard support mobile viewing4 mega pixel HD resolution 2592x1944 20/30 FPS 15FPS @ 5MPPOE LAN connectionIngress protection rating IP66IR distance 20-35M3
6mm lens

Camera
Image Sensor
1/3" OV4689 CMOS
Effective Pixels
2688x1520 (HxV)
Electronic Shutter
AUTO, 1/25s ~ 1/100000s
Min. Illumination
0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night
Auto/Color/(B/W)/Timing
WDR
Digital WDR
White Balance
Auto
AGC/BLC
Support
DNR
2D/3D DNR
Other
Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate
Encode
Embedded Solution
Hi3516D
Video Standard
H.265/H.264
Video Resolution
Main Stream: 15fps@5MP(2592x1944), 25fps@4MP(2592x1520), 30fps@3MP/1080P/720P Sub Stream: VGA(640x480)/360P/QVGA@25fps, etc.
Video Bitrates
32Kbps - 8Mbps, VBR/CBR
Audio Standard
G.711-u
IR Led
IR Led
6pcs Array IR Leds
IR Distance
20-30M
Lens
Focal Length
3.6mm Fixed Lens
Optional Function
POE, Audio, SD card, etc.
Network Services
Protocal
HTTP, RTSP, FTP, NFS, SMTP, DHCP, NTP, etc.
P2P
Yes
Web
IE, Firefox, etc.
Media
CMS, Android, iOS
ONVIF
2.4 compatible
General
Network Port
1-RJ45, 100Mbps, POE optional
Power Supply
12 VDC ± 10%
Power Consumption
<8W
Operating Temp.
-20°C-(+60)°C, 10%-90%RH
'
