LN5

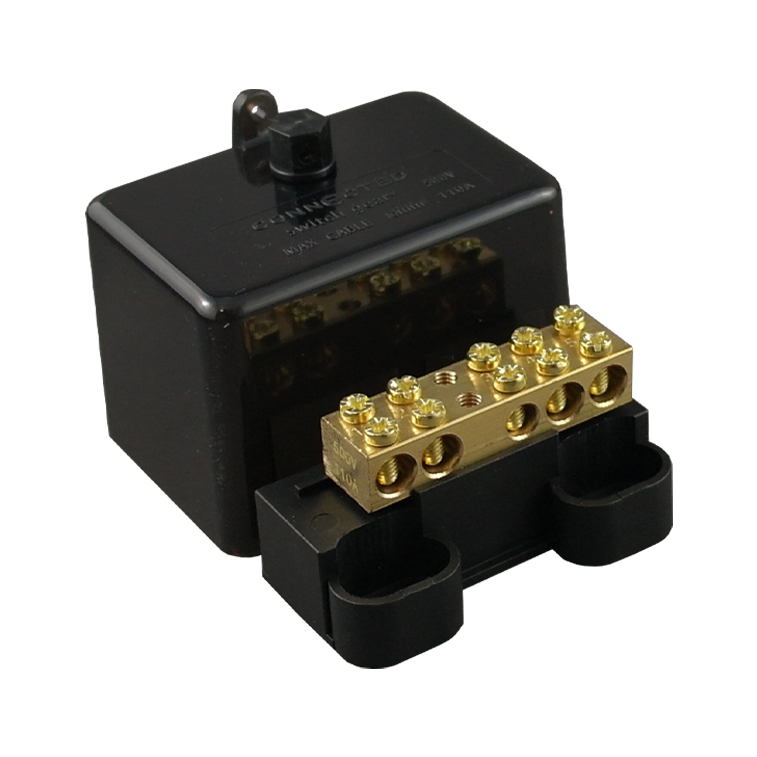

5 Hole Neutral Link


$7.10 List price: $9.30
+

Weight: 0.500 kg

Product Name/Title: 5 Hole Neutral Link

Brand: Connected Switchgear

SKU: LN5

Alternatively Known As: Neutral Link, 5 Hole Neutral Link, Electrical Neutral Link

Technical Specifications
  • Product Code: LN5
  • Voltage: 500V
  • Current Rating: 110A
  • Configuration: 1 x 4mmØ, 4 x 6mmØ
  • Compliance: AS/NZS 60947.7.3:2015
  • Dimensions (H x L x W): 50mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Manufactured from high percentage brass material.
  • Rated at 500V in both 110A and 350A.
  • Terminal diameter accepts cable size up to 16mm².
  • Comes with a black transparent screw-on cover to indicate amperage and cable size.
Professional Installation Requirements
  • Installation by an authorised electrician is recommended for safety and compliance.
Applications
  • Electrical installations requiring neutral links in residential and commercial settings.
Standards & Compliance
  • Complies with AS/NZS 60947.7.3:2015 for electrical equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

5 Year In House Warranty covering replacement and installation by an authorised electrician.

Available Now

The 5 Hole Neutral Link from Connected Switchgear is available now for immediate purchase, ideal for various electrical installations.

LN5 (Active-and-Neutral-Links.pdf, 121 Kb) [Download]
