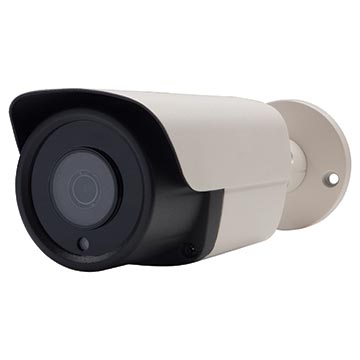

The CB001 is IP66 waterproof rated and features an IR range up to 20m
Featuring a 3
6mm fixed lens with a 1/2
8" Sony IMX335 Low light CMOS sensor, Digital Wide Dynamic Range and Ultra low illumination at 0
01Lux
View More Security
ONVIF 17
06 compatible for simple communication and mobile viewing 5MP resolution 2592 x 1944 at 15 frames per second or 4MP at 25 frames per secondFixed 3
6mm lens with a 1/2
8" Sony IMX335 Low light CMOS sensor12pcs SMD IR Led with IR distance of 20mSupports RTSP/FTP/DHCP/DDNS/NTP/SMTP/NFS protocolsSupports H
265/H
264 video standards
Camera
Image Sensor
1/2.8" Sony IMX335 CMOS
Effective Pixels
2592x1944 (HxV)
Electronic Shutter
AUTO, 1/25s ~ 1/100000s
Min. Illumination
0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night
Auto/Color/(B/W)/Timing
WDR
Digital WDR
White Balance
Auto/Indoor/Outdoor
AGC/BLC
Support
DNR
2D/3D DNR
Other
Motion Detection, Privacy Mask, Mirror, flip
Encode
Embedded Solution
Mstar 316DM
Video Standard
H.265/H.264
Video Resolution
Main Stream:15fps@ 5MP(2592*1944), 25fps@ 4MP(2592*1520)Sub Stream: VGA(640x480)/360P@25fps, etc.
Video Bitrates
32Kbps - 6Mbps, VBR/CBR
Audio Standard
G.711-u/G.711-a
Lens
Focal length
3.6mm lens
Optional Function
POE, Audio, Alarm In/Out, SD card, etc.
Network Services
Protocol
RTSP/FTP/DHCP/NTP etc.
P2P
Yes
Web
IE, Firefox, etc.
Media
CMS, Android, iOS
ONVIF
17.06 compatible
General
Network Port
1-RJ45, 100Mbps, POE optional
Power Supply
12 VDC ± 10%
Power Consumption
<10 W
Operating Temp.
-30°C-(+60)°C, 10%-90%RH
'
