LN8

8 Hole Neutral Link


$10.70 List price: $14.00
+

Weight: 0.500 kg

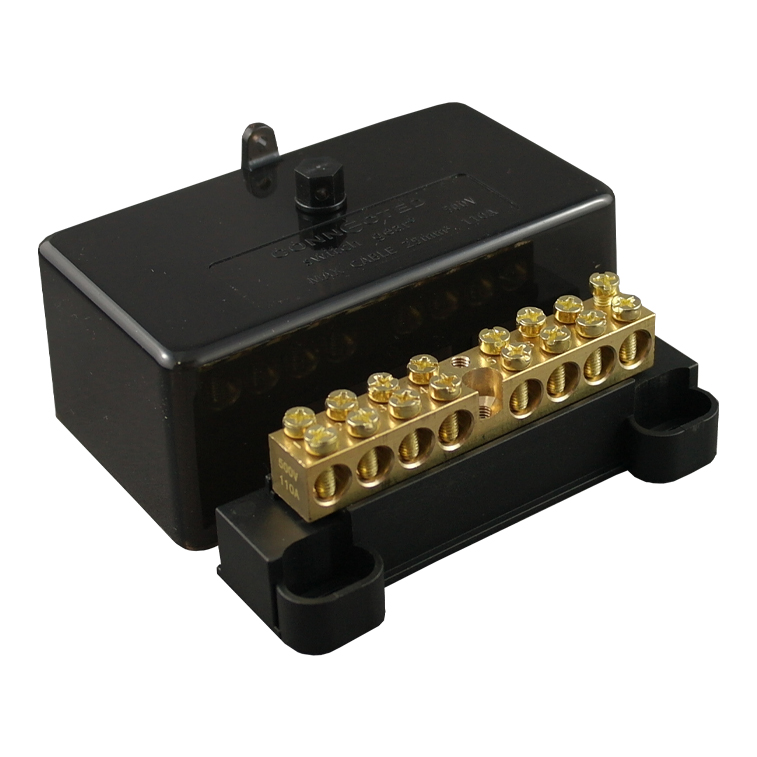

Product Name/Title: 8 Hole Neutral Link

Brand: Connected Switchgear

SKU: LN8

Alternatively Known As: Neutral Link, 8 Hole Neutral Link, Brass Neutral Link

Technical Specifications
  • Product Code: LN8
  • Voltage: 500V
  • Current Rating: 110A
  • Configuration: 8 x 7mmØ terminal holes
  • Compliance: AS/NZS 60947.7.3:2015
  • Dimensions (H x L x W): 50mm x 200mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Manufactured from high percentage brass material
  • Rated at 500V in both 110A and 350A configurations
  • Accepts cable size up to 25mm² with 8 terminal holes
  • Comes with a black transparent screw-on cover to indicate amperage and cable size
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electrical installations in residential and commercial buildings
  • Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 60947.7.3:2015 for electrical equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

5 years in-house warranty covering replacement and installation by an authorized electrician.

Available Now

The 8 Hole Neutral Link is available now for immediate purchase, ideal for electrical installations in various settings.

LN8 (Active-and-Neutral-Links.pdf, 121 Kb) [Download]
