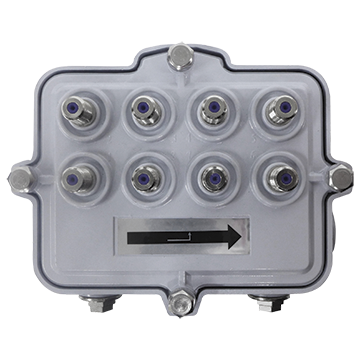

Product Name/Title: 8 Way CATV Tap 20dB 1GHz
Brand: Matchmaster
SKU: 17MM-C820
Alternatively Known As: 8 Way Coaxial Splitter, Cable TV Splitter, CATV Multitap
Technical Specifications
- Input Port: 1
- Output Ports: 8
- Frequency Range: 5 to 1000 MHz
- Return Loss: 14 dB
- Insertion Loss: 8 dB
- Operating Temperature: -20°C to +60°C
- Connector Type: F-Type
- Dimensions (H x L x W): 100mm x 50mm x 150mm
- Weight: 0.3 kg
Key Features
- 8-way configuration for multiple cable outputs.
- 20dB signal attenuation for efficient distribution.
- 1GHz frequency range suitable for most cable television applications.
Professional Installation Requirements
- Installation by a qualified technician is recommended for optimal performance.
Applications
- Residential: Multi-dwelling units and homes with multiple TV connections.
- Commercial: Hotels, offices, and retail spaces requiring cable TV distribution.
Standards & Compliance
- Complies with AS/NZS 60950 for safety standards.
Environmental Benefits
- Helps in reducing electronic waste by supporting efficient distribution and usage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The 8 Way CATV Tap 20dB 1GHz is available now for immediate purchase. Ideal for enhancing cable TV services in both residential and commercial settings.
