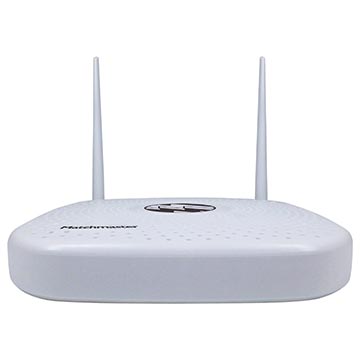

9 Channel Wi-Fi NVR 2MP

NW09-1 is a 9 Channel, 2MP IP Wi-Fi NVR
The NW09-1 is suited to work with any of the 50MM-CWxxx cameras in the Matchmaster range
Supporting up to 8TB HDD* for long term recording to help protect your property
Remote access via the MM Vision Application on your iOS and Android device from anywhere in the world*View More Security
9 channel recording Wi-Fi NVR supporting up to 5MP Cameras1 SATA Hard Disk Interface (2
5"/3
5" SATA) supporting up to 8TB HDD (HDD sold separately)Supports H
264/H
265/H
264+/H
265+ video compression standardsSupport ONVIF version 2
4 and Web Browsers IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)Supports Manual\Timer\Motion Detection\Smart Alarm recording modes with search functions for all recording typesWorks with all Matchmaster 50MM-CWxxx camera range

System
Main Processor
ARM Cortex A7 Quad-core Processor
Operating system
Embedded LINUX
Video
Input
9CH (2592 x 1944, 2048 x 1536, 1920 x 1080, 128 x 960, 1280 x 720, etc)
Output
1 VGA, 1 HD
Audio
Output
1 Port RCA (Linear, 1KΩ
Audio Bit Rate
64kbps
Audio Compression standard
G711u, G711a, G726
Alarm
Sensor input
No
Output
No
Motion Detection
9 Channel, MD Zones: 396 (22 × 18)
Trigger Events
Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output
Al Function
Face Comparison
1 channel video stream face Comparison(1 face databases with 10 face images)
Display
HD1
Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA
Resolution:1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Display Split
9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
Digital Zoom
Yes
OSD
Camera Title, Time, Recording, Motion Detection, Alarm
Recording
Video Compression
H.264/H.265/H.264+/H.265+
Resolution
5MP (2592 x 1944), 4MP (2688 x 1520), 3MP (2048 x 1536), 1080P (1920 x 1080), 960P (1280 x 960), 720P (1280 x 720), D1 (720 x 576/720 x 480)
Record Rate
PAL :5MP@9x25fp, 4MP@9x25fp, 3MP@9x25fp, 1080P@9x25fp, 960P@9x25fp, 720P@9x25fp, D1@9x25fp
NTSC: 5MP@9x30fp, 4MP@9×30fp,3MP@9x30fp, 1080P@9x30fp, 960P@9x30fp, 720P@9x30fp, D1@9x30fp
Record Mode
Manual\Timer\Motion Detection\Smart Alarm
Playback & Backup
Local Sync Playback
1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability
4CH 1080P@20fps
Remotre Sync Playback
Yes
Search Mode
ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm
Playback
Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
Backup mode
Network/USB(With usb hub)
Network
Interface
1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth
60MB
Network Functions
TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif Version
Support Onvif 2.4
Web Browser
IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software
Support Windows 7/ Windows 8/Windows 10
Cloud Support (P2P)
Yes
Smart Phone
iPhone,iPad, Android, Android Pad
Wi-Fi
Support, Wi-Fi Range: No obstacles 300m Max.
Storage
Interface Type
1 SATA Hard Disk Interface (2.5"/3.5" SATA)
Capacity
Up to 8TB capacity
General
General
Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
USB Interface
1 USB 2.0 Interfaces
RS485
Up to 8TB capacity
Power Supply
DC12V/2A
Working Environment
-10~55℃/10~90%
Dimensions(WxDxH)
219 x 217 x 40(mm)
Weight
2.0kg (without HDD)
'
