440RN23124

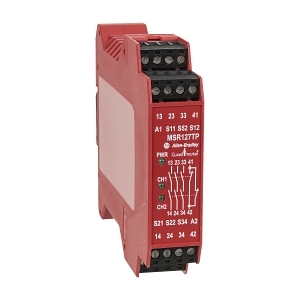

AB 440R MSR Safety Relay 230VAC 1NC/2NC/LC-IN 3NO-SFTY 1NC-AUX AM


$447.90 List price: $594.80
+

Weight: 0.260 kg

Product Name/Title: AB 440R MSR Safety Relay 230VAC 1NC/2NC/LC-IN 3NO-SFTY 1NC-AUX AM

Brand: NHP

SKU: 440RN23124

Alternatively Known As: Safety Relay, MSR Relay, Monitoring Relay

Technical Specifications
  • Rated operation current (IE): 5 A
  • Control supply voltage (US) at AC 50 Hz: 230 V
  • Number of outputs safety-related undelayed with contact: 3
  • Degree of protection: IP40
  • Max shock acceleration: 10 g
  • Max vibration frequency operational: 55 Hz
  • Ambient temperature during operating: -5 to 55 °C
  • Dimensions (H x L x W): 99mm x 114.5mm x 22.5mm
  • Weight: 0.26 kg
Key Features
  • Safety category according to EN ISO 13849-1: Category 4
  • Performance level according to EN ISO 13849-1: Level e
  • IP40 protection degree for the device
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Safety monitoring in machinery and equipment
  • Commercial: Safety systems in commercial buildings
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Complies with relevant safety standards for electrical devices.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 440R MSR Safety Relay 230VAC is available now for immediate purchase. Ideal for industrial and commercial safety monitoring applications.
