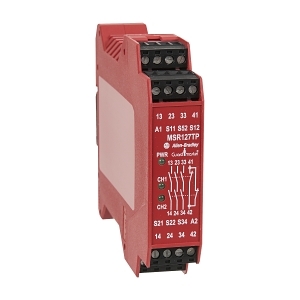

Product Name/Title: AB 440R MSR Safety Relay 230VAC 1NC/2NC.LC-IN 4NO-SFTY 1NC-AUX AM/MM 1.5-30S
Brand: NHP
SKU: 440RM23089
Alternatively Known As: Safety Relay, MSR Relay, Monitoring Relay
Technical Specifications
- Rated operation current (IE): 7 A
- Rated operation current (IE) at AC 15 230 V: 6 A
- Rated operation current (IE) at DC 13 24 V: 3 A
- Voltage type for actuating: AC
- Control supply voltage (US) at AC 50 Hz: 230 V
- Type of electric connection: Screw connection
- Number of outputs safety related undelayed with contact: 2
- Rail mounting possible: Yes
- Max shock acceleration: 10 g
- Max vibration displacement PK-PK: 0.35 mm
- Max vibration frequency operational: 55 Hz
- Ambient temperature during operating: -5-55 °C
- Dimensions (H x L x W): 99mm x 114.5mm x 45mm
- Weight: 0.49 kg
Key Features
- Safety category according to EN ISO 13849-1: 4
- Performance level according to EN ISO 13849-1: Level e
- IP40 degree of protection
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Safety monitoring in machinery and equipment
- Commercial: Safety systems in various applications
Standards & Compliance
- Complies with AS/NZS 4801 for Occupational Health & Safety Management Systems.
Environmental Benefits
- Energy efficiency and reduced waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 440R MSR Safety Relay is available now for immediate purchase. Ideal for safety monitoring in industrial and commercial applications.
