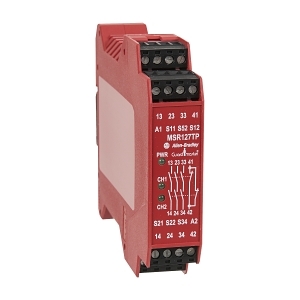

Product Name/Title: AB 440R MSR Safety Relay Single Function 115VAC 1NC/2NC/LC/SM-IN 3NO-SFTY 2NC/2SS-AUX AM/MM
Brand: NHP
SKU: 440RC23137
Alternatively Known As: Safety Relay, MSR Relay, Monitoring Relay
Technical Specifications
- Rated operation current (IE): 6 A
- Control supply voltage: 115 V AC at 50 Hz
- Number of outputs: 3 safety-related undelayed contacts
- Type of electric connection: Screw connection
- Degree of protection: IP40
- Max shock acceleration: 10 g
- Max vibration displacement: 0.35 mm
- Max vibration frequency operational: 55 Hz
- Dimensions (H x L x W): 99mm x 114.5mm x 45mm
- Weight: 0.45 kg
Key Features
- Rated operation current of 6 A at AC 15, 230 V.
- Safety category according to EN ISO 13849-1: 4.
- Performance level according to EN ISO 13849-1: Level e.
- IP40 protection degree for the device.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Safety monitoring in machinery and equipment
- Commercial: Safety systems in buildings and facilities
Standards & Compliance
- Complies with relevant safety standards for industrial applications.
Environmental Benefits
- Designed for reliable operation in a wide temperature range of -5 to 55 °C.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 440R MSR Safety Relay is available now for immediate purchase. Ideal for safety monitoring in industrial and commercial applications.
