450LB4HN1650YD

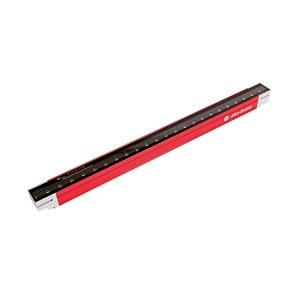

AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 1650mm Resolution 30mm


$2,837.30 List price: $3,767.60
+

Weight: 5.000 kg

Product Name/Title: AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 1650mm Resolution 30mm

Brand: NHP

SKU: 450LB4HN1650YD

Alternatively Known As: Light Curtain Safety Sensor, POC Light Curtain, Safety Light Barrier

Technical Specifications
  • Voltage Type: DC
  • Supply Voltage: 24 V
  • Type of Safety according to IEC 61496-1: 4
  • Material Housing: Metal
  • Degree of Protection: IP65
  • Number of Beams: 16
  • Beam Spacing: 30 mm
  • Wavelength of the Sensor: 850 nm
  • Height Protected: 1650 mm
  • Ambient Temperature: -10-55 °C
  • Dimensions (H x L x W): 1650mm x 100mm x 30mm
  • Weight: 5.0 kg
Key Features
  • 16 beams with 30 mm beam spacing for enhanced safety coverage.
  • IP65 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal safety and performance.
Applications
  • Industrial: Manufacturing and assembly lines
  • Safety: Protection for personnel in hazardous areas
Standards & Compliance
  • Complies with AS/NZS 62061 for safety-related control systems.
Environmental Benefits
  • Designed to operate in a wide temperature range, reducing the need for additional heating or cooling.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 450L GuardShield POC Light Curtain is available now for immediate purchase. Ideal for industrial applications requiring safety and protection.

Non-Returnable & Non-Cancellable
