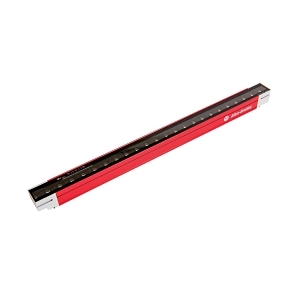

Product Name/Title: AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 1800mm Resolution 30mm
Brand: NHP
SKU: 450LB4HN1800YD
Alternatively Known As: Light Curtain Safety Device, Safety Light Barrier, POC Light Curtain
- Supply Voltage: 24 V DC
- Type of Safety: IEC 61496-1 Class 4
- Material Housing: Metal
- Degree of Protection: IP65
- Number of Beams: 16
- Beam Spacing: 30 mm
- Wavelength of the Sensor: 850 nm
- Height Protected: 1800 mm
- Ambient Temperature: -10 to 55 °C
- Dimensions (H x L x W): 1800mm x 100mm x 30mm
- Weight: 2.5 kg
- 16 beams with 30 mm beam spacing for enhanced safety coverage.
- IP65 rated for protection against dust and water ingress.
- Professional installation by a qualified technician is recommended for optimal safety and performance.
- Industrial: Manufacturing and assembly lines
- Safety: Machine guarding and personnel protection
- Complies with AS/NZS 60950 for safety and performance standards.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The AB 450L GuardShield POC Light Curtain is available now for immediate purchase. Ideal for industrial applications requiring safety and protection.
