871PD20BP40D4

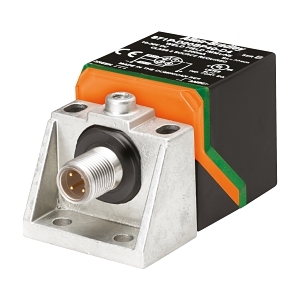

AB 871 Inductive Proximity Sensor Cube 40mm 10-30V DC 20mm NONC PNP Shld 4 Wire Micro 4 DC QD Brck


$150.60 List price: $199.90
+

Weight: 0.020 kg

Product Name/Title: AB 871 Inductive Proximity Sensor Cube 40mm 10-30V DC 20mm NONC PNP Shld 4 Wire Micro 4 DC QD Brck

Brand: NHP

SKU: 871PD20BP40D4

Alternatively Known As: Inductive Proximity Switch, Proximity Sensor, Non-contact Sensor

Technical Specifications
  • Type of actuation: Metallic Target
  • Switching distance: 20 mm
  • Voltage type: DC
  • Rated control supply voltage (DC): 10-30 V
  • Max output current: 200 mA
  • Switch function: Change-over contact
  • Switching output: PNP
  • Switching frequency: 40 Hz
  • Electric connection: Plug-in connection
  • Voltage drop: 5 V
  • Degree of protection: IP67
  • Material housing: Plastic
  • Storage temperature: -25-70 °C
  • Dimensions (H x L x W): 40mm x 30mm x 40mm
  • Weight: 0.02 kg
Key Features
  • Inductive proximity sensor with a switching distance of 20 mm.
  • PNP output with a maximum output current of 200 mA.
  • IP67 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Industrial automation
  • Manufacturing processes
  • Material handling
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Enhanced safety and reduced risk of environmental damage.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 871 Inductive Proximity Sensor Cube 40mm 10-30V DC is available now for immediate purchase. Ideal for industrial automation and manufacturing processes.
