889DF8AB10

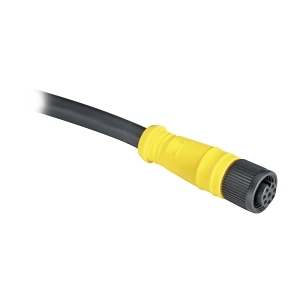

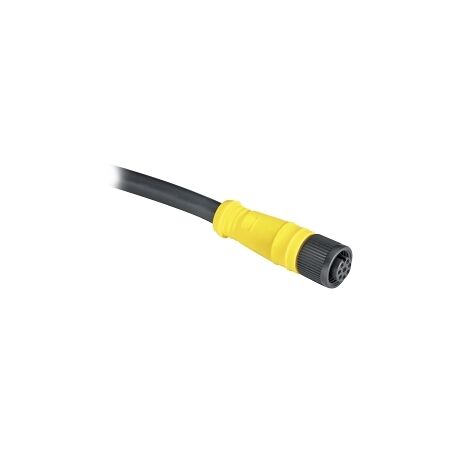

AB 889D Cordset Cable PVC Black 8 Pin 24AWG DC Micro Female Straight M12 Unshielded 10m


$153.00 List price: $203.10
+

Weight: 0.500 kg

Product Name/Title: AB 889D Cordset Cable PVC Black 8 Pin 24AWG DC Micro Female Straight M12 Unshielded 10m

Brand: NHP

SKU: 889DF8AB10

Alternatively Known As: M12 Connector Cable, 8 Pin Micro Cable, DC Micro Female Cable

Technical Specifications
  • Rated Current: 1.5 A
  • Rated Voltage: 36 V
  • Number of Poles: 8
  • Material Housing: Plastic
  • Coating Housing: Uncoated
  • Material Core Insulation: Other
  • Material of Contact Surface: Gold
  • Degree of Protection: IP69K
  • Mounting Method: Freely positionable
  • AWG Size: 24
  • Cable Diameter: 14 mm
  • Operating Temperature: -20-80 °C
  • Dimensions (H x L x W): 14mm x 10000mm x 14mm
  • Weight: 0.5 kg
Key Features
  • 8-pin female connector for secure connections.
  • IP69K rated for high protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Automation systems, machinery connections
  • Commercial: Equipment requiring reliable power connections
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 889D Cordset Cable is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power connections.
