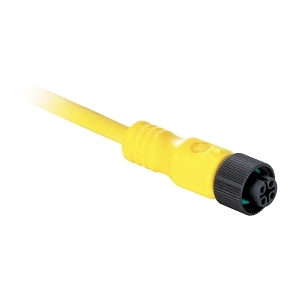

Product Name/Title: AB 889D Cordset Cable PVC Yellow 4 Pin 22AWG DC Micro Female Straight M12 Foil Shield with Braid 2m
Brand: NHP
SKU: 889DF4FC2
Alternatively Known As: M12 Connector Cable, 4 Pin Micro Cable, DC Micro Cable
- Rated Current: 4 A
- Rated Voltage: 250 V
- Number of Poles: 4
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP69K
- Mounting Method: Freely positionable
- With Shield Connection: Yes
- AWG Size: 22
- Cable Diameter: 14 mm
- Cable Length: 2000 mm
- Operating Temperature: -20-105 °C
- Dimensions (H x L x W): 14mm x 2000mm x 14mm
- Weight: 0.3 kg
- IP69K rated for high-pressure and high-temperature applications.
- 4-pin female connector for secure connections.
- Professional installation is recommended for optimal performance and safety.
- Industrial: Automation systems, machinery connections
- Commercial: Equipment requiring reliable electrical connections
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
- Durable materials reduce the need for frequent replacements.
1 year warranty against manufacturing defects.
The AB 889D Cordset Cable PVC Yellow 4 Pin 22AWG DC Micro Female Straight M12 is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical connections.
