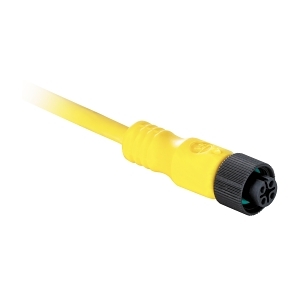

Product Name/Title: AB 889D Cordset Cable PVC Yellow 4 Pin 22AWG DC Micro Male Right Female M12 Straight Unshielded .3m
Brand: NHP
SKU: 889DF4ACDE0M3
Alternatively Known As: M12 Connector Cable, 4 Pin DC Micro Cable, PVC Yellow Cordset
- Rated Current: 4 A
- Rated Voltage: 250 V
- Number of Poles: 4
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP69K
- Mounting Method: Freely positionable
- AWG Size: 22
- Cable Diameter: 14 mm
- Cable Length: 300 mm
- Screw-in Thread: M12
- With Shield Connection: No
- Dimensions (H x L x W): 14mm x 300mm x 14mm
- Weight: 0.2 kg
- 4-pin configuration for versatile connectivity.
- IP69K rated for high protection against dust and water.
- Operating temperature range of -20 to 105 °C.
- Professional installation is recommended for optimal performance and safety.
- Industrial: Suitable for connecting various electrical devices in automation and control systems.
- Commercial: Ideal for use in machinery and equipment requiring reliable power connections.
- Complies with relevant Australian standards for electrical safety.
- Durable materials reduce the need for frequent replacements.
1 year warranty against manufacturing defects.
The AB 889D Cordset Cable PVC Yellow 4 Pin 22AWG DC Micro Male Right Female M12 Straight Unshielded .3m is available now for immediate purchase. Ideal for industrial and commercial applications.
