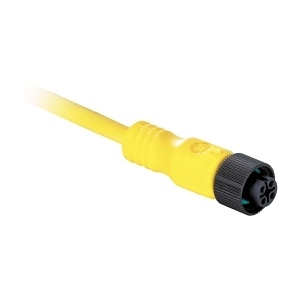

AB 889D Cordset Cable PVC Yellow M12 2 Pin Female M12 2 Pin Male Straight Unshielded 0.3M


$49.80 List price: $66.10
+

Weight: 0.200 kg

Product Name/Title: AB 889D Cordset Cable PVC Yellow M12 2 Pin Female M12 2 Pin Male Straight Unshielded 0.3M

Brand: NHP

SKU: 889DF2ACDMK0M3

Alternatively Known As: M12 Cordset, M12 Connector Cable, PVC M12 Cable

Technical Specifications
  • Rated Current: 4 A
  • Rated Voltage: 250 V
  • Number of Poles: 2
  • Type of Plug: Female (bus)
  • Material Housing: Plastic
  • Coating Housing: Uncoated
  • Material Core Insulation: Other
  • Material of Contact Surface: Gold
  • Degree of Protection: IP69K
  • Mounting Method: Freely positionable
  • AWG Size: 22
  • Cable Diameter: 14 mm
  • Screw-in Thread: M12
  • Operating Temperature: -20 to 105 °C
  • Dimensions (H x L x W): 14mm x 300mm x 14mm
  • Weight: 0.2 kg
Key Features
  • PVC yellow cable for high visibility and safety.
  • IP69K rated for protection against dust and water ingress.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Suitable for connecting sensors and actuators in automation systems.
  • Commercial: Ideal for use in machinery and equipment requiring reliable connections.
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 889D Cordset Cable PVC Yellow M12 2 Pin Female to Male is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable
