889DF5ACDM1

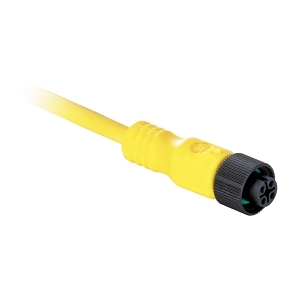

AB 889D Cordset PVC Yellow 5 Pin 22AWG DC Micro Male Straight DC Micro Female Straight M12 1m


$88.90 List price: $118.00
+

Weight: 0.200 kg

Product Name/Title: AB 889D Cordset PVC Yellow 5 Pin 22AWG DC Micro Male Straight DC Micro Female Straight M12 1m

Brand: NHP

SKU: 889DF5ACDM1

Alternatively Known As: DC Micro Cordset, 5 Pin Connector, M12 Connector

Technical Specifications
  • Rated Current: 4 A
  • Rated Voltage: 250 V
  • Number of Poles: 5
  • Type of Plug: Female (bus)
  • Material Housing: Plastic
  • Coating Housing: Uncoated
  • Material Core Insulation: Other
  • Material of Contact Surface: Gold
  • Degree of Protection: IP69K
  • Mounting Method: Freely positionable
  • AWG Size: 22
  • Cable Diameter: 14 mm
  • Cable Length: 1000 mm
  • Screw-in Thread: M12
  • Operating Temperature: -20 to 105 °C
  • Dimensions (H x L x W): 14mm x 1000mm x 14mm
  • Weight: 0.2 kg
Key Features
  • 5-pin configuration for versatile connections.
  • IP69K rated for high protection against dust and water.
  • Operating temperature range of -20 to 105 °C.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Automation systems, machinery connections
  • Commercial: Equipment power supply, control systems
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 889D Cordset PVC Yellow 5 Pin 22AWG DC Micro is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable connectivity.
