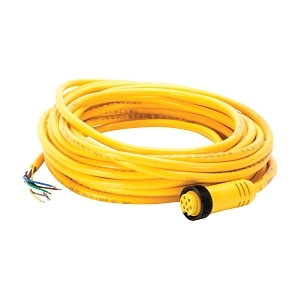

Product Name/Title: AB 889N Cordset Cable PVC Yellow 7 Pin 18 to 20AWG Mini Plus Female Straight Unshielded 10m
Brand: NHP
SKU: 889NF7AG10
Alternatively Known As: 7 Pin Cordset, PVC Yellow Cable, Mini Plus Female Connector
Technical Specifications
- Rated Current: 8 A
- Rated Voltage: 300 V
- Number of Poles: 7
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP68
- Mounting Method: Freely positionable
- AWG Size: 18
- Cable Diameter: 14 mm
- Cable Length: 10000 mm
- Operating Temperature: -40-105 °C
- Dimensions (H x L x W): 14mm x 10000mm x 14mm
- Weight: 1.5 kg
Key Features
- 7-pin female connector for reliable connections.
- IP68 rated for protection against dust and water ingress.
- Operating temperature range of -40 to 105 °C.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment connections
- Commercial: Automation and control systems
- General: Any application requiring a robust cable connection
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 889N Cordset Cable PVC Yellow 7 Pin 18 to 20AWG Mini Plus Female Straight Unshielded 10m is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust cable connections.
