889PR4AB2

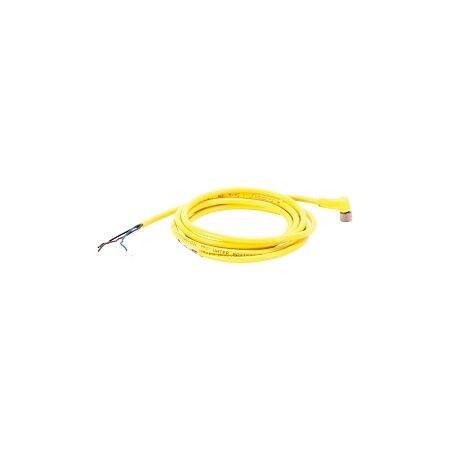

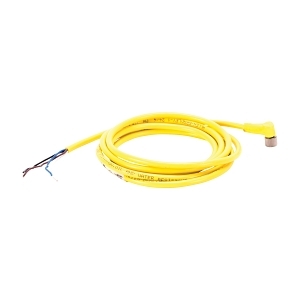

AB 889P Cordset Cable PVC Yellow 4 Pin 24AWG Pico Female Right Angle M8 Unshielded 2m


$41.50 List price: $55.20
+

Weight: 0.300 kg

Product Name/Title: AB 889P Cordset Cable PVC Yellow 4 Pin 24AWG Pico Female Right Angle M8 Unshielded 2m

Brand: NHP

SKU: 889PR4AB2

Alternatively Known As: M8 Cordset, 4 Pin Connector Cable, Pico Female Cable

Technical Specifications
  • Rated Current: 4 A
  • Rated Voltage: 60 V
  • Number of Poles: 4
  • Type of Plug: Female (bus)
  • Material Housing: Plastic
  • Coating Housing: Uncoated
  • Material Core Insulation: Other
  • Material of Contact Surface: Gold
  • Degree of Protection: IP67
  • Mounting Method: Freely positionable
  • AWG Size: 24
  • Cable Diameter: 4.6 mm
  • Cable Length: 2000 mm
  • Operating Temperature: -20 to 105 °C
  • Dimensions (H x L x W): 5mm x 2000mm x 5mm
  • Weight: 0.3 kg
Key Features
  • 4-pin female connector for reliable connections.
  • IP67 rated for protection against dust and water.
  • Operating temperature range of -20 to 105 °C.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Automation systems, machinery connections
  • Commercial: Equipment and device connectivity
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 889P Cordset Cable is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable connectivity.
