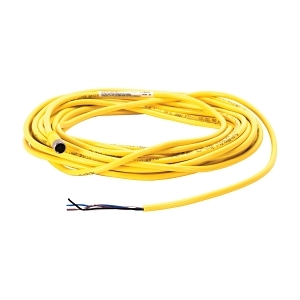

Product Name/Title: AB 889P Cordset Cable PVC Yellow 4 Pin 24AWG Pico Female Straight M8 Unshielded 10m
Brand: NHP
SKU: 889PF4AB10
Alternatively Known As: M8 Cordset, 4 Pin Pico Cable, Unshielded M8 Connector
- Rated Current: 4 A
- Rated Voltage: 60 V
- Number of Poles: 4
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP67
- Mounting Method: Freely positionable
- AWG Size: 24
- Cable Diameter: 4.6 mm
- Cable Length: 10000 mm
- Operating Temperature: -20-105 °C
- Dimensions (H x L x W): 5mm x 10000mm x 5mm
- Weight: 0.5 kg
- 4-pin female connector for reliable connections.
- IP67 rated for protection against dust and water ingress.
- Operating temperature range of -20 to 105 °C.
- Professional installation is recommended for optimal performance and safety.
- Industrial: Automation and control systems
- Commercial: Machinery and equipment connections
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
- Durable materials reduce the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The AB 889P Cordset Cable PVC Yellow 4 Pin 24AWG Pico Female Straight M8 Unshielded 10m is available now for immediate purchase. Ideal for industrial and commercial applications.
