889RR3AEA2

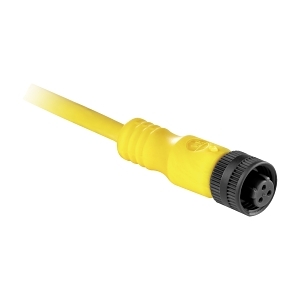

AB 889R Cordset Cable PVC Yellow 4 Pin 18AWG AC Micro Female Right Angle Unshielded 2m


$60.10 List price: $79.80
+

Weight: 0.500 kg

Product Name/Title: AB 889R Cordset Cable PVC Yellow 4 Pin 18AWG AC Micro Female Right Angle Unshielded 2m

Brand: NHP

SKU: 889RR3AEA2

Alternatively Known As: 4 Pin AC Micro Cordset, PVC Yellow Cable, 18AWG Cordset

Technical Specifications
  • Rated Current: 4 A
  • Rated Voltage: 250 V
  • Number of Poles: 3
  • Type of Plug: Female (bus)
  • Material Housing: Plastic
  • Coating Housing: Uncoated
  • Material Core Insulation: Other
  • Material of Contact Surface: Gold
  • Degree of Protection: IP69K
  • Mounting Method: Freely positionable
  • AWG Size: 18
  • Cable Diameter: 14 mm
  • Cable Length: 2000 mm
  • Operating Temperature: -20-105 °C
  • Dimensions (H x L x W): 14mm x 2000mm x 14mm
  • Weight: 0.5 kg
Key Features
  • 4 A rated current and 250 V rated voltage for reliable performance.
  • IP69K protection rating for high resistance to dust and water.
  • Freely positionable mounting method for versatile installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and performance.
Applications
  • Industrial: Machinery and equipment connections
  • Commercial: Electrical installations requiring durable cabling
Standards & Compliance
  • Complies with relevant Australian electrical standards.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 889R Cordset Cable PVC Yellow 4 Pin 18AWG AC Micro Female Right Angle 2m is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
