A9N18572

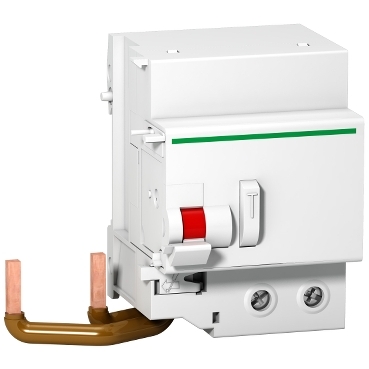

Acti9 C120, Earth leakage add-on block, 2P, 30 mA, class A


$641.00 List price: $961.50
+

Weight: 0.325 kg

Product Name/Title: Acti9 C120, Earth leakage add-on block, 2P, 30 mA, class A

Brand: Clipsal

SKU: A9N18572

Alternatively Known As: Acti9 Vigi C120, Earth Leakage Protection Device, Residual Current Device

Technical Specifications
  • Rated current: 125 A
  • Rated operational voltage: 230...240 V AC 50/60 Hz
  • Mounting mode: clip-on
  • Mounting support: 35 mm symmetrical DIN rail
  • IP degree of protection: IP20
  • Ambient air temperature for operation: -25...60 °C
  • Rated insulation voltage: 500 V AC conforming to IEC 60947-1
  • Rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
  • Total power losses: 7.2 W
  • Tightening torque: 3.5 N.m
  • Pollution degree: 3 conforming to IEC 60947-2
  • Dimensions (H x L x W): 95mm x 73mm x 117mm
  • Weight: 0.325 kg
Key Features
  • Add-on residual current device with 30 mA sensitivity.
  • Instantaneous earth-leakage protection class A.
  • Compatible with single terminal connections.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial and residential applications requiring earth leakage protection.
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Complies with EN 61009 for safety and performance standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Acti9 C120 Earth Leakage Add-On Block is available now for immediate purchase. Ideal for small commercial and residential applications.
