A9N18579

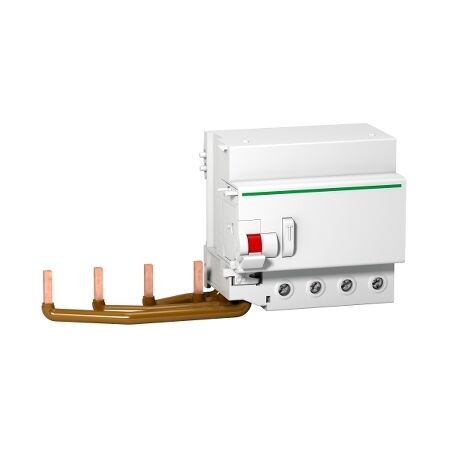

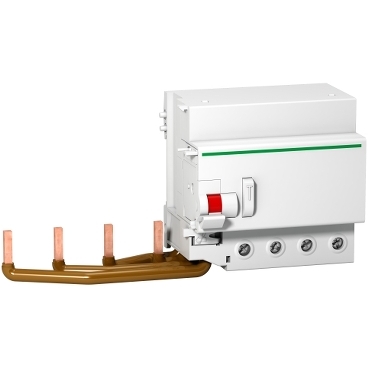

Acti9 C120, Earth leakage add-on block, 4P, 300 mA, class A


$653.50 List price: $980.30
+

Weight: 0.580 kg

Product Name/Title: Acti9 C120, Earth leakage add-on block, 4P, 300 mA, class A

Brand: Clipsal

SKU: A9N18579

Alternatively Known As: Acti9 Vigi C120, Earth Leakage Circuit Breaker, Residual Current Device

Technical Specifications
  • Rated current: 125 A
  • Rated operational voltage: 230...415 V AC 50/60 Hz
  • Mounting mode: clip-on
  • Mounting support: 35 mm symmetrical DIN rail
  • IP degree of protection: IP20
  • Ambient air temperature for operation: -25...60 °C
  • Rated insulation voltage: 500 V AC 50/60 Hz
  • Rated impulse withstand voltage: 6 kV
  • Total power losses: 10.8 W
  • Power losses per pole: 3.6 W
  • Tightening torque: 3.5 N.m
  • Dimensions (H x L x W): 95mm x 73mm x 198mm
  • Weight: 0.58 kg
Key Features
  • Instantaneous earth-leakage protection
  • Voltage independent residual current tripping technology
  • Compatible with single terminal connections
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes and small commercial buildings
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Complies with EN 61009 and IEC standards for safety and performance.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Acti9 C120 Earth Leakage Add-On Block is available now for immediate purchase. Ideal for residential and small commercial applications.
