A9XPH124

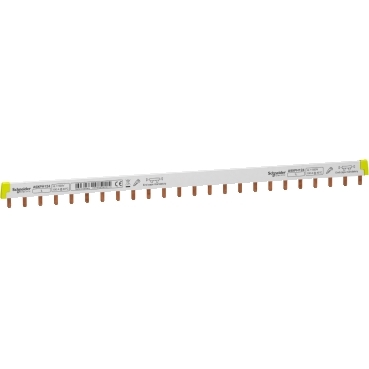

Acti9, Comb Busbar, 1L, 18 mm pitch, 24 modules, 100A


$37.70 List price: $56.50
+

Weight: 0.100 kg

Product Name/Title: Acti9, Comb Busbar, 1L, 18 mm pitch, 24 modules, 100A

Brand: Clipsal

SKU: A9XPH124

Alternatively Known As: Acti9 Busbar, Comb Busbar, Electrical Busbar

Technical Specifications
  • Rated operational voltage: 415 V AC
  • IP Rating: IP20 with end-pieces and tooth covers
  • Rated insulation voltage: 500 V AC conforming to IEC 61439-2
  • Fire resistance: 960 °C (30 s) conforming to IEC 60695-2-1
  • Pollution degree: 3 conforming to IEC 60947-7-1
  • Mounting mode: horizontal
  • Connector type: tooth
  • Insulation: insulated
  • Distance between ways: 18 mm
  • Connection pitch: 18 mm
  • Dimensions (H x L x W): 50mm x 427mm x 430mm
  • Weight: 0.1 kg
Key Features
  • Comb busbar design for efficient electrical distribution.
  • Cuttable for customized installations.
  • Rated operational current of 100A at 40°C.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electrical distribution in residential and commercial buildings
  • Integration with Acti9 circuit breakers and devices
Standards & Compliance
  • Complies with EN/IEC 61439-1 for safety and performance standards.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • Complies with environmental regulations.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Acti9 Comb Busbar 100A, 24 Modules is available now for immediate purchase. Ideal for electrical distribution in residential and commercial buildings.
