A9MEM1570

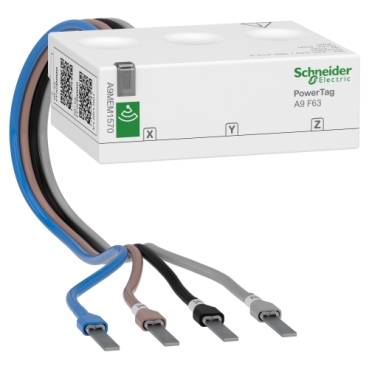

Acti9, Energy sensor, PowerTag Flex 63A 3P+N top and bottom position


$292.80 List price: $439.20
+

Weight: 0.068 kg

Product Name/Title: Acti9, Energy sensor, PowerTag Flex 63A 3P+N top and bottom position

Brand: Clipsal

SKU: A9MEM1570

Alternatively Known As: PowerTag Energy Sensor, Acti9 Energy Monitor

Technical Specifications
  • Rated operational voltage: 220...240 V AC, +/- 20 %
  • Max current: 63 A
  • IP Rating: IP20
  • Operating temperature: -25...60 °C
  • Measurement category: Category III
  • Accuracy class: Class 1 current, Class 0.5 voltage
  • Dimensions (H x L x W): 20mm x 46.6mm x 54mm
  • Weight: 0.068 kg
Key Features
  • Top and bottom mounting positions
  • Compatible with various Acti9 devices
  • Radio frequency transmission support
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Buildings: Breaker voltage monitoring
  • Cost allocation
  • Overload alarm
  • Energy management
Standards & Compliance
  • Complies with IEC 61557-12 for energy monitoring
Environmental Benefits
  • Green Premium product status
  • Packaging made with recycled cardboard
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Clipsal Acti9 PowerTag Flex 63A Energy Sensor is available now for immediate purchase. Ideal for energy management in commercial and residential buildings.
