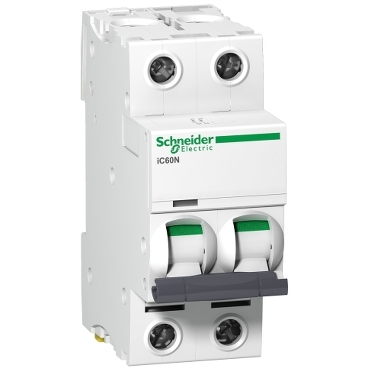

Product Name/Title: Acti9 iC60N DISBO, Miniature circuit breaker (MCB), 2P, 20A, D curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9F45220
Alternatively Known As: Miniature Circuit Breaker, MCB, Acti9 Circuit Breaker
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 12...440V AC, 100...133V DC
- Mechanical durability: 20,000 cycles
- Electrical durability: 10,000 cycles
- Connection type: Single terminal (top or bottom) 1-25 mm² rigid, 1-16 mm² flexible
- Rated insulation voltage: 500V AC
- Rated impulse withstand voltage: 6kV
- Pollution degree: 3
- Overvoltage category: IV
- Dimensions (H x L x W): 85mm x 78.5mm x 36mm
- Weight: 0.25 kg
Key Features
- 2P, 20A, D curve, 6000A breaking capacity
- Thermal-magnetic trip unit technology
- Clip-on mounting support
- Trip indicator for local signalling
- IP20 rated for protection against solid objects
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring circuit protection
Standards & Compliance
- Complies with EN/IEC 60947-2 and EN/IEC 60898-1 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directive, ensuring toxic heavy metal-free construction.
- Packaging made with recycled cardboard and without single-use plastic.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Acti9 iC60N DISBO Miniature Circuit Breaker is available now for immediate purchase. Ideal for residential and commercial spaces, providing essential circuit protection.
