MD224C32

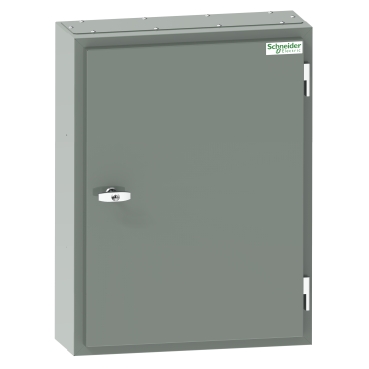

Acti9, MD Encapsulated distribution board, 24 poles, 250A main switch, 18mm, IP56, grey


$2,255.90 List price: $3,383.80
+

Weight: 36.000 kg

Product Name/Title: Acti9, MD Encapsulated distribution board, 24 poles, 250A main switch, 18mm, IP56, grey

Brand: Clipsal

SKU: MD224C32

Alternatively Known As: Weatherproof Distribution Board, Encapsulated DB, Acti9 Distribution Board

Technical Specifications
  • Rated operational voltage: 415 V
  • Rated operational current: 250 A
  • Number of poles: 24 x 18 mm
  • Breaking capacity: 25 kA
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6 kV
  • Enclosure material: Steel
  • Enclosure type: Weatherproof enclosure
  • Network frequency: 50 Hz
  • Dimensions (H x L x W): 750mm x 225mm x 580mm
  • Weight: 36 kg
Key Features
  • IP56 rated for protection against dust and water.
  • Weatherproof enclosure suitable for outdoor installations.
  • Includes earth/neutral terminal block and removable gland plates.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Industrial facilities, large buildings requiring robust electrical distribution.
  • General: Any location needing a reliable and weatherproof distribution board.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Packaging made with recycled cardboard.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Acti9 MD Encapsulated Distribution Board is available now for immediate purchase. Ideal for commercial and industrial applications requiring robust electrical distribution.
