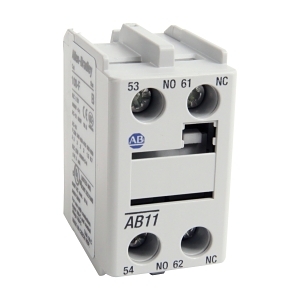

Product Name/Title: Allen-Bradley 100C Auxiliary Contact with 1NO Contact and 1NC Contact Front Mount
Brand: NHP
SKU: 100FA11
Alternatively Known As: Auxiliary Contact Block, 100C Contact, NHP Auxiliary Contact
Technical Specifications
- Number of contacts: 1NO, 1NC
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 24 V: 6 A
- Rated operation current at AC 15 120 V: 6 A
- Rated operation current at AC 15 240 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at DC 12-24 V: 12 A
- Rated operation current at DC 12-110 V: 3.5 A
- Rated operation current at DC 12-220 V: 0.55 A
- Rated operation current at DC 13-24 V: 5 A
- Rated operation current at DC 13-110 V: 1.2 A
- Rated operation current at DC 13-220 V: 0.6 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Rated operation current at AC 15 230 V: 5.5 A
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Rated insulation voltage of 690 V.
- Top mounting method for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control circuits, automation systems
- Commercial: Machinery, equipment control
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Designed for energy efficiency in control applications.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100C Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
