100FA20

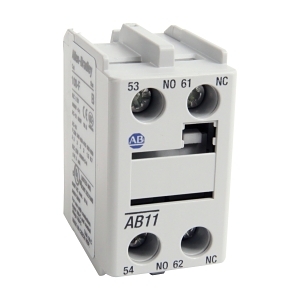

Allen-Bradley 100C Auxiliary Contact with 2NO Contact Front Mount


$45.30 List price: $60.20
+

Weight: 0.300 kg

Product Name/Title: Allen-Bradley 100C Auxiliary Contact with 2NO Contact Front Mount

Brand: NHP

SKU: 100FA20

Alternatively Known As: Auxiliary Contact Block, 100C Contact, Front Mount Contact

Technical Specifications
  • Number of Contacts: 2 NO
  • Rated Insulation Voltage: 690 V
  • Rated Operation Current (AC 15, 24 V): 6 A
  • Rated Operation Current (AC 15, 120 V): 6 A
  • Rated Operation Current (AC 15, 240 V): 5 A
  • Rated Operation Current (AC 15, 400 V): 3 A
  • Rated Operation Current (DC 12-24 V): 12 A
  • Rated Operation Current (DC 12-110 V): 3.5 A
  • Rated Operation Current (DC 12-220 V): 0.55 A
  • Rated Operation Current (DC 13-24 V): 5 A
  • Rated Operation Current (DC 13-110 V): 1.2 A
  • Rated Operation Current (DC 13-220 V): 0.6 A
  • Min Contact Rating Current: 5 mA
  • Min Contact Rating Voltage: 17 V
  • Rated Operation Current (AC 15, 230 V): 5.5 A
  • Mounting Method: Top mounting
  • Dimensions (H x L x W): 100mm x 75mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 2 Normally Open (NO) contacts for versatile control options.
  • Rated insulation voltage of 690 V for high voltage applications.
  • Top mounting method for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Used in various electrical control applications.
  • Commercial: Suitable for automation and control systems.
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 100C Auxiliary Contact with 2NO Contact Front Mount is available now for immediate purchase. Ideal for industrial and commercial control applications.
