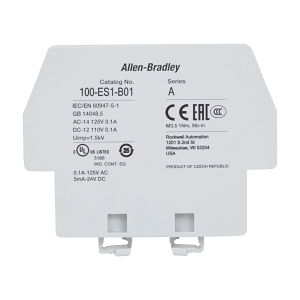

Product Name/Title: Allen-Bradley 100E Auxiliary Contact with 1NO Contact and 1NC Contact Side Mount Inside Position
Brand: NHP
SKU: 100ES111
Alternatively Known As: Auxiliary Contact Block, 100E Contact Block
Technical Specifications
- Number of Contacts: 1 NO, 1 NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 16 A
- Rated Operation Current at AC 15 (24 V): 6 A
- Rated Operation Current at AC 15 (120 V): 6 A
- Rated Operation Current at AC 15 (240 V): 4 A
- Rated Operation Current at AC 15 (400 V): 3 A
- Rated Operation Current at DC 13 (24 V): 3 A
- Rated Operation Current at DC 13 (110 V): 0.55 A
- Rated Operation Current at DC 13 (220 V): 0.3 A
- Min Contact Rating Current: 50 mA
- Min Contact Rating Voltage: 12 V
- Mounting Method: Side mounting
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Rated insulation voltage of 690 V.
- Side mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Used in control circuits for machinery and equipment
- Commercial: Suitable for various electrical applications requiring auxiliary contacts
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100E Auxiliary Contact is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable auxiliary contacts.
