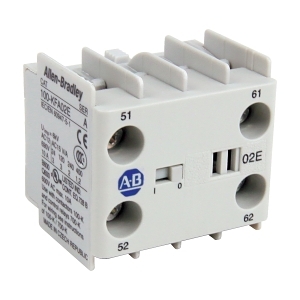

Product Name/Title: Allen-Bradley 100K Auxiliary Contact with 2NC Contact for 100K and 700K Front Mount
Brand: NHP
SKU: 100KFA02E
Alternatively Known As: Auxiliary Contact Block, Mini Auxiliary Contact
Technical Specifications
- Number of Contacts: 2 NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 10 A
- Rated Operation Current at AC 15 24 V: 3 A
- Rated Operation Current at AC 15 120 V: 3 A
- Rated Operation Current at AC 15 240 V: 2 A
- Rated Operation Current at AC 15 400 V: 1.2 A
- Rated Operation Current at DC 13 24 V: 2.3 A
- Rated Operation Current at DC 13 110 V: 0.55 A
- Rated Operation Current at DC 13 220 V: 0.27 A
- Min Contact Rating Current: 2 mA
- Min Contact Rating Voltage: 15 V
- Rated Operation Current at AC 15 230 V: 2 A
- Mounting Method: Top mounting
- Dimensions (H x L x W): 30mm x 60mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 Normally Closed (NC) contacts for reliable operation.
- Top mounting method for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Used in conjunction with 100K and 700K contactors for control circuits.
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Designed for energy efficiency and reduced operational costs.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100K Auxiliary Contact with 2NC Contact is available now for immediate purchase. Ideal for industrial control applications.
