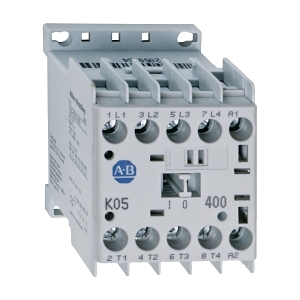

Product Name/Title: Allen-Bradley 100K Contactor Mini 2.2kW 3Pole 230VAC Coil 1NC Contact Auxiliary
Brand: NHP
SKU: 100K05KF01
Alternatively Known As: Mini Contactor, Power Contactor, 3 Pole Contactor
Technical Specifications
- Number of normally open contacts: 3
- Number of normally closed contacts: 0
- Rated operation current at AC 3, 400 V: 4.9 A
- Rated operation power at AC 3, 400 V: 2.2 kW
- Rated operation current at AC 1, 400 V: 20 A
- Max rated operation voltage: 690 V
- Control supply voltage at AC 50 Hz: 230 V
- Number of auxiliary contacts (normally open): 0
- Number of auxiliary contacts (normally closed): 1
- Rated operation current at AC 3, 690 V: 2.8 A
- Rated operation power at AC 3, 690 V: 2.2 kW
- Rated operation power at AC 4, 400 V: 0.55 kW
- Control supply voltage at AC 60 Hz: 230 V
- Power consumption AC coil pickup: 35 VA
- Power consumption AC coil hold-in: 5 VA
- Type of electrical connection: Screw connection
- Rated operation current at AC 4, 400 V: 2 A
- Degree of protection: IP20
- Mounting method: DIN-rail/screw
- Dimensions (H x L x W): 56mm x 53mm x 45mm
- Weight: 0.16 kg
Key Features
- 3 Pole contactor with 1 normally closed auxiliary contact.
- Rated for 2.2 kW at 230 VAC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control applications
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100K Contactor Mini 2.2kW is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
