100SE40KN13C

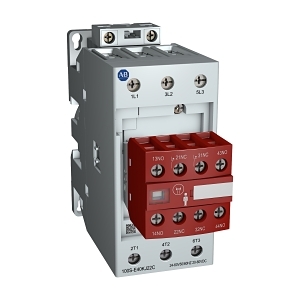

Allen-Bradley 100SE Safety Contactor 22kW 3P 250-500V AC/DC Coil 1NO 3NC Auxiliary


$1,267.60 List price: $1,683.20
+

Weight: 1.000 kg

Product Name/Title: Allen-Bradley 100SE Safety Contactor 22kW 3P 250-500V AC/DC Coil 1NO 3NC Auxiliary

Brand: NHP

SKU: 100SE40KN13C

Alternatively Known As: Safety Contactor, Power Contactor, 100SE Contactor

Technical Specifications
  • Number of Normally Open Contacts: 3
  • Number of Normally Closed Contacts: 0
  • Rated Operation Current at AC 3, 400V: 40 A
  • Rated Operation Power at AC 3, 400V: 18.5 kW
  • Rated Operation Current at AC 1, 400V: 70 A
  • Max Rated Operation Voltage: 690 V
  • Voltage Type for Actuating: AC/DC
  • Rated Control Supply Voltage at AC 50 Hz: 250-500 V
  • Rated Control Supply Voltage at DC: 250-500 V
  • Number of Auxiliary Contacts (NO): 1
  • Number of Auxiliary Contacts (NC): 3
  • Rated Operation Current at AC 3, 690V: 25 A
  • Rated Operation Power at AC 3, 690V: 22 kW
  • Power Consumption AC Coil Pickup: 25 VA
  • Power Consumption AC Coil Hold In: 4 VA
  • Power Consumption DC Coil Pickup: 25 W
  • Power Consumption DC Coil Hold In: 2 W
  • Type of Electrical Connection: Screw connection
  • Degree of Protection: IP20
  • Mounting Method: DIN-rail/screw
  • Dimensions (H x L x W): 125.5mm x 144mm x 55mm
  • Weight: 1 kg
Key Features
  • Safety contactor with 22kW power rating and 3 poles.
  • AC/DC coil operation with a control voltage range of 250-500V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and safety systems
  • Commercial: Automation and control applications
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 100SE Safety Contactor is available now for immediate purchase. Ideal for industrial and commercial automation applications.
