100SE16KY431C

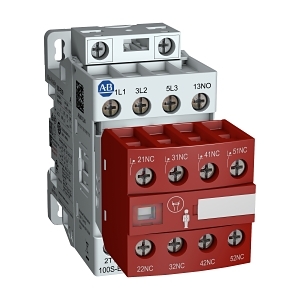

Allen-Bradley 100SE Safety Contactor 9kW 4P 48-130V AC/DC Coil 3NO 1NC Auxiliary


$497.00 List price: $659.90
+

Weight: 0.320 kg

Product Name/Title: Allen-Bradley 100SE Safety Contactor 9kW 4P 48-130V AC/DC Coil 3NO 1NC Auxiliary

Brand: NHP

SKU: 100SE16KY431C

Alternatively Known As: Safety Contactor, Power Contactor, 100SE Contactor

Technical Specifications
  • Number of Normally Open Contacts: 4
  • Number of Normally Closed Contacts: 0
  • Rated Operation Current at AC 3, 400V: 16 A
  • Rated Operation Power at AC 3, 400V: 7.5 kW
  • Rated Operation Current at AC 1, 400V: 30 A
  • Max Rated Operation Voltage: 690 V
  • Voltage Type for Actuating: AC/DC
  • Rated Control Supply Voltage at AC 50 Hz: 48-130 V
  • Rated Control Supply Voltage at DC: 48-130 V
  • Number of Auxiliary Contacts (NO): 3
  • Number of Auxiliary Contacts (NC): 1
  • Rated Operation Current at AC 3, 690V: 10.5 A
  • Rated Operation Power at AC 3, 690V: 9 kW
  • Power Consumption AC Coil Pickup: 50 VA
  • Power Consumption AC Coil Hold In: 2.2 VA
  • Power Consumption DC Coil Pickup: 50 W
  • Power Consumption DC Coil Hold In: 2 W
  • Type of Electrical Connection: Screw connection
  • Degree of Protection: IP20
  • Mounting Method: DIN-rail/screw
  • Dimensions (H x L x W): 86mm x 110.5mm x 45mm
  • Weight: 0.32 kg
Key Features
  • 4 Pole Safety Contactor with 3 Normally Open and 1 Normally Closed Auxiliary Contacts.
  • Rated for operation at 9 kW with a control voltage of 48-130V AC/DC.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and safety systems
  • Commercial: Automation and control applications
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Enhances safety in electrical systems, reducing the risk of accidents.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 100SE Safety Contactor is available now for immediate purchase. Ideal for industrial and commercial automation applications.
