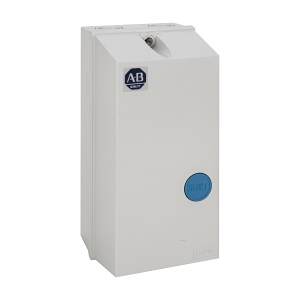

Product Name/Title: Allen-Bradley 109C DOL 11kW Reset 230VAC Coil Coil 5.4 to 27A Overload
Brand: NHP
SKU: 109C23VKFE1E7
Alternatively Known As: DOL Motor Starter, Direct Online Starter, 11kW Motor Starter
Technical Specifications
- Type of Motor Starter: Direct online starter (DOL)
- Rated Operation Power at AC 3 400 V: 11 kW
- Rated Operation Current at AC 3 400 V: 23 A
- Rated Operation Current IE: 27 A
- Long Time Overload Protection Adjustment Range: 5.4-27 A
- Release Class: Adjustable
- Voltage Type for Actuating: AC
- Control Supply Voltage Us at AC 50 Hz: 230 V
- Temperature Compensated Overload Protection: Yes
- Type of Electrical Connection of Main Circuit: Screw connection
- Type of Electrical Connection for Auxiliary and Control Current Circuit: Screw connection
- External Reset Possible: Yes
- Device Construction: Enclosed
- Material: Plastic
- Degree of Protection IP: IP66
- Dimensions (H x L x W): 208mm x 112mm x 98mm
- Weight: 2.5 kg
Key Features
- Direct online starter (DOL) for efficient motor control.
- Adjustable long-time overload protection from 5.4 to 27 A.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control applications
- Commercial: Equipment requiring reliable motor starting
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 109C DOL 11kW Reset 230VAC Coil is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
Non-Returnable & Non-Cancellable
