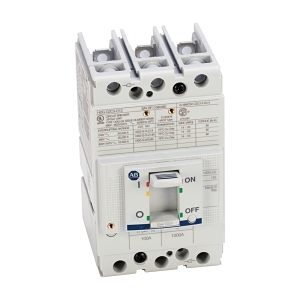

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 3P 110A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG2C3D11
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 110A
Technical Specifications
- Rated current: 110 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 36 kA
- Rated service short circuit breaking capacity: 36 kA
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Rated short circuit breaking capacity at 690 V: 6 kA
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Mechanical life: 25000 cycles
- Power loss: 24.9 W
- Dimensions (H x L x W): 130mm x 101mm x 76.2mm
- Weight: 1.1 kg
Key Features
- Rated current: 110 A
- 36 kA short circuit breaking capacity
- Thermal/magnetic release trip unit
- Fixed thermal and magnetic trip curve
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB G Frame 36kA 3P 110A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
