Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB G Frame 36kA 3P 16A Fixed Thermal Magnetic

Trade Discount 25%

SKU: 140GG2C3C16

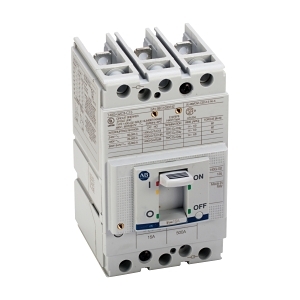

Allen-Bradley 140G MCCB G Frame 36kA 3P 16A Fixed Thermal Magnetic

$237.40 List price: $315.30

+ −

30 Days Return Delivery Options

Weight: 1.100 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 3P 16A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GG2C3C16

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 16A

Technical Specifications

Rated Current: 16 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Fixed thermal, fixed magnetic
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA at 690 V AC
Rated Short Circuit Breaking Capacity (ICS): 4.5 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 4.5 W
Max Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 130mm x 101mm x 76.2mm
Weight: 1.1 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
Rated short circuit breaking capacity of 36 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor protection, power distribution
Commercial: Electrical panels, machinery

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Complies with AS/NZS 60950 for safety and performance standards.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB G Frame 36kA 3P 16A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

Non-Returnable & Non-Cancellable
