Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB G Frame 70kA 3P 160A Adjustable Thermal Magnetic

Trade Discount 25%

SKU: 140GG6E3D16

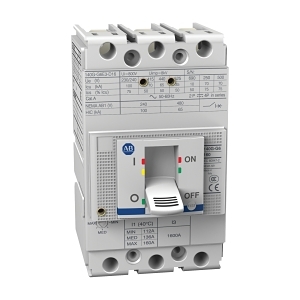

Allen-Bradley 140G MCCB G Frame 70kA 3P 160A Adjustable Thermal Magnetic

$1,329.20 List price: $1,765.00

+ −

30 Days Return Delivery Options

Weight: 1.100 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB G Frame 70kA 3P 160A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GG6E3D16

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 35 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, fixed magnetic
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 45 W
Rated Surrounding Temperature: 40 °C
Maximum Operating Temperature: 75 °C
Storage Temperature: -40 to 80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 130mm x 101mm x 76.2mm
Weight: 1.1 kg

Key Features

Adjustable thermal and fixed magnetic trip unit for customized protection.
High breaking capacity of 70 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Allen-Bradley 140G MCCB G Frame 70kA 3P 160A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
